Bel 10 100 1000 Base T 2250022 4 Rj45 Magjack Connectors - China

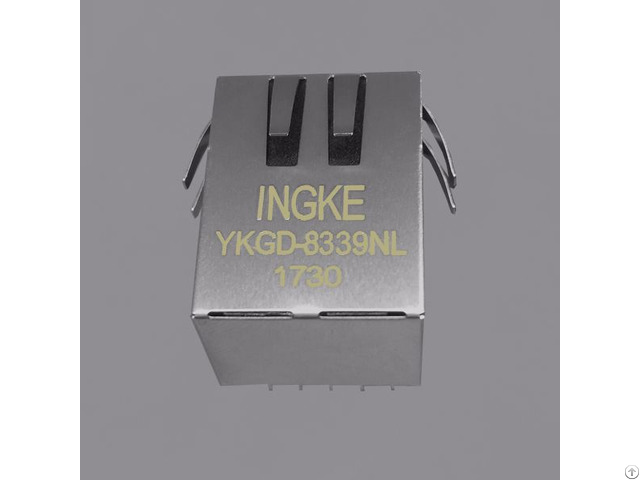

Ingke Technology YKGD-8339NL cross 2250022-4 Bel 10/100/1000 Base-T RJ45 Magjack Connectors Part Number : 2250022-4 Made in China: YKGD-8339NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Packaging : Tray Connector Type: RJ45 Number of Ports : 1 Number of Rows : 1 Applications : 10/100/1000 Base-T, AutoMDIX Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder LED Color: Green, Yellow - Green, Yellow Number of Cores per Jack : 12 Shielding : Shielded, EMI Finger Features: Board Lock Tab Direction : Down Contact Material : Phosphor Bronze Contact Finish : Gold Operating Temperature : -40℃~85℃ Contact Finish Thickness : 30µin (0.76µm) Shield Material : Copper Ally Housing Material : Thermoplastic Manufacturer: Ingke Technology Co., Ltd

INGKE can provide 3D model for engineers' design

Our service: 1).

Free sample is available! 2).

OEM & ODM orders are welcomed.

3).

We offer after-sale service for 8 years.

Our Advantage: 1).

High-quality, OEM factory for RJ45 Connector more than 10 years.

2).

Cost reduction, lead time within 1 week, FREE samples.

3).

After sales services 24*7 to help you solve any kind of problems Ingke Technology Mass production of the following models;

08B1-1X1T-06-F 08B0-1X1T-06-F 08B0-1D1T-06-F 08B0-1G1T-06-F 08B0-1X1T-36-F 08B0-1X1T-03-F 0821-1X1T-36-F 08C2-1X1T-03 08C2-1X1T-36 0813-1X1T-57-F 0826-1X1T-M1-F

V890-1AX1-A1 0826-1L1T-57-F L829-1J1T-43 L829-1X1T-91 0826-1X1T-43-F 0826-1K1T-43-F L834-1G1T-S7 0862-1J1T-43-F 0821-1X1T-43-F 0826-1X1T-23-F 0826-1A1T-23-F 0826-1K1T-23-F 0826-1G1T-23-F 0826-1C1T-23-F L826-1X1T-23-F 0838-1X1T-W6 0875-1G2T-E3 0826-1X2T-23-F 08B0-1X4T-36-F L826-1X4T-43-F L826-1X4T-23-F S811-1X1T-A4-F S811-1X1T-A4-F 0826-1X1T-32-F G10-1GHT-035 0826-1X4T-23-F 08B0-1X1T-01-F

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: +8615920079718

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
