Bergquist Gap Pad Tgp 5000 - China
price: 1.00 Dollar US$

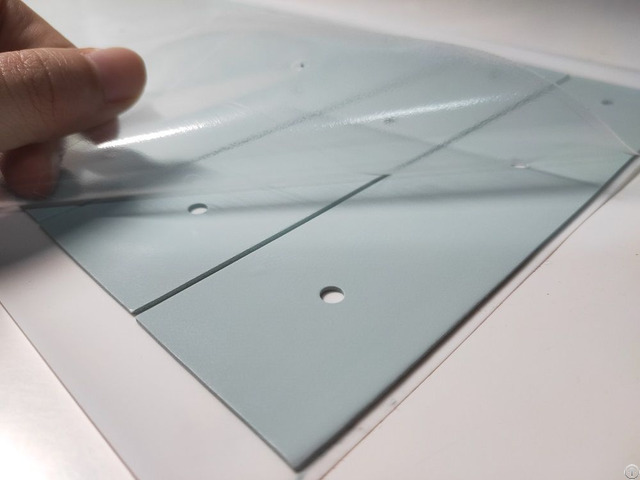

BERGQUIST GP5000S35 Features and Benefits • High-thermal conductivity: 5.0 W/m-K • Highly conformable, “S-Class” softness • Naturally-inherent tack reduces interfacial thermal resistance • Conforms to demanding contours and maintains structural integrity with little or no stress applied to fragile component leads • Fiberglass reinforced for puncture, shear and tear resistance • Excellent thermal performance at low pressures BERGQUIST GAP PAD TGP 5000 is a fiberglass-reinforced filler and polymer featuring a high thermal conductivity.
The material yields extremely soft characteristics while maintaining elasticity and conformability.
The fiberglass reinforcement provides easy handling and converting, added electrical isolation and tear resistance.
The inherent natural tack on both sides assists in application and allows the product to effectively fill air gaps, enhancing the overall thermal performance.
The top side has reduced tack for ease of handling.
BERGQUIST GP5000S35 is ideal for high-performance applications at low mounting pressures.
BERGQUIST GAP PAD 5000S35 Typical Applications Include: • Voltage Regulator Modules (VRMs) and POLs • CD-ROMs and DVD-ROMs • PC Board to chassis • ASICs and DSPs • Memory packages and modules • Thermally-enhanced BGAs Configurations Available: • Die-cut parts are available in any shape or size, separated or in sheet form
Company Contact:
- Posted By: Shenzhen hothree technology co., LTD
- Phone: 13798203669
- Address: Building F3, Jinyucheng Park, Longgang District, Shenzhen , Guangdong , China
- Email:
- Website: http://www.tim-home.com
Published date: May 13, 2022
- Business Description: Shenzhen Hothree Technology Co., Ltd. was established in 2011 - It is a technology-oriented company that is oriented to customer needs and is committed to providing customers with professional solutions for thermal conduction and EMI electromagnetic compatibility problems.
The company mainly distributes thermal interface materials and shielding (EMI) materials for well-known brands such as Bergquist ,LAIRD in the US and Denka in Japan.
At the same time, the company is also developing and integrating new high-performance products to meet system designers' requirements for thermal conductivity.
Products are widely used in 5G communications, optical modules, security electronics, automotive electronics, outdoor base stations, lithium batteries, mobile phones, computers, LED, instruments, aerospace and medical equipment.
Company culture, Integrity and pragmatism, quick response, keep improving.
