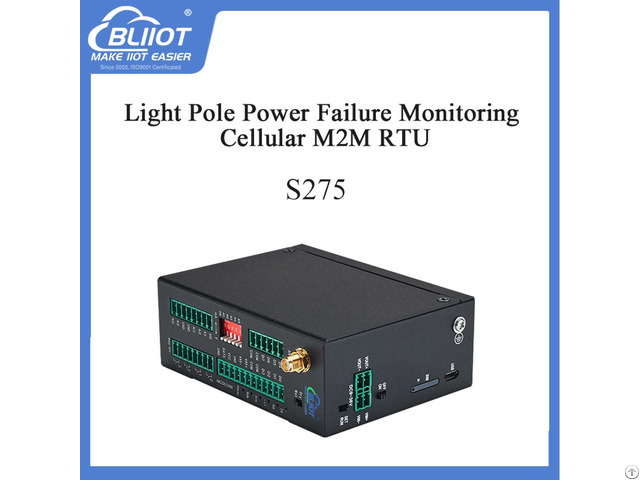

Best Selling 8di 4do 6ai 1th 1 Rs485 Port Cellular Rtu Monitoring Unit For Street Light Control - China

Features:

4G network communication, can be operated from anywhere, no distance limitation;

Wide range power supply 9~36VDC with over voltage and phase-reversal protection;

Embedded ARM Cortex-M4 32 Bit RISC Core RTOS system, reliable performance with in-built watchdog;

8 digital inputs, supports both dry contact and wet contact.

Logic level: 10~30V or short circuit treated as close, 0~3V or open circuits treated as open.

DIN0 as a high-speed pulse counter, sampling frequency: 1MHz; DIN1~3 as low-speed pulse counter, anti-shake time can be set 1~2000ms, default 1ms; DIN1 with arm and disarm function;

4 relay output (5A@30VDC, 5A@250VAC), can auto control by timer, alarm-link and remote control by SMS, cloud.

The first DO can set time to control by authorize number;

1 temperature & humidity sensor input for monitoring onsite environment, the sensor model is AM2301, temperatures range from -40°C to 80°C, with a 0.5°C accuracy, humidity range from 0 to 100RH%, with a 3% accuracy;

6 analog inputs, 12bits resolution, supports 0-5V, 0-20mA, 4-20mA output transducers;

Inbuilt 32G SD card to save up to tens of thousands historical data and events;

1 RS485 port, support Modbus slave protocol, can link up to SCADA, HMI, DSC, PLC.

Support Modbus Master protocol, can connect to 16 Modbus Salve, e.

g: Data Acquisition Module, meters, generator, PLC, VFD, etc., and 320 tags can set alarm value and content, also support data transparent transmission;

Powerful SMS function: Threshold high SMS alert, SMS set, SMS inquiry, SMS command for Modbus PLC, and SMS monitoring communication with Slaves;

Inbuilt 1 DC output for external transducers to save wiring cost;

Automatically resend the data while communication interrupt or failure, and failure will alert by SMS;

Supports remote restart, remote configure and operate by SMS commands;

10 SMS Alert and auto dial numbers for receiving alarm message, can program to receive specified alarm message.

The authorized numbers also can dial to open the door or turn on/off machine with a free charge call at the specified time;

Inbuilt inter-lock logic programmer and powerful timer program function;

Support SMS, dial, 4G network for alert, USB port for configuration and upgrade firmware;

Support TCP/UDP, MQTT, Modbus TCP, Modbus RTU over TCP, BLIIoT IoT RTU protocol and data transparent transmission;

Metal case with IP30 protection grade, safely isolated from inner system, especially suitable for industrial control application.

Small size: 108mmx82mmx40mm, support wall-mounting and DIN Rail mounting.
