Bga Repair Ps3 Station Wds 650 Used Chips Rework Equipment Automatic - China

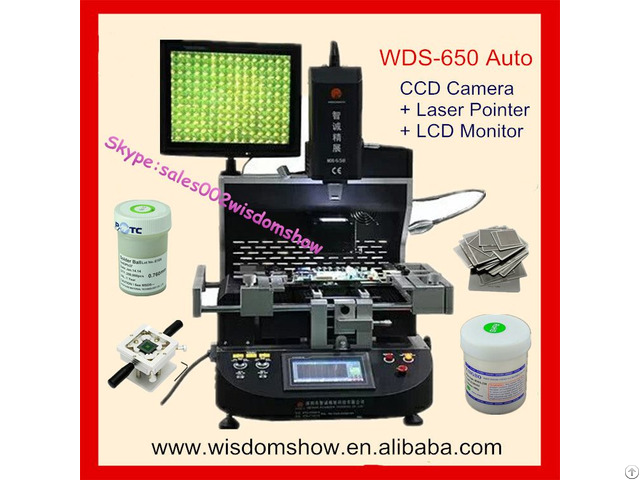

WDS-650 BGA Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.

WDS-650 automatic BGA Rework Station Main features:

Easy operate, 100% success rate.

1 - Auto pick and remove function, do not need joystick.

2 - High resolution optical alignment system and HD camera system + 3 axies micro adjust, accurate bga positon, ensure precise mounting.

3 - Built-in infrared laser position, fast positioning for PCB.

4 - Nozzle, equiped with many size nozzles, which also can be customized.

5.3 temperature zones controlled independently, the upper and lower is hot air, the 3rd is IR pre-heating.

7 - With a powerful cross-flow and 3 external temp sensor socket

8 - High sensitive touch screen, Panasonic PLC control.

9 - Alarm function and double over-temperature protection.

Position : V-groove+laser position+universal fixture.

WDS-650 BGA Rework Station Technical parameter

1 - Total power 5300W

2 - Upper heating power 1200W

3 - Lower heating power Second temperature zone 1200W, Third temperature zone2700W

4 - Power supply (Single Phase)AC 110V/220V±10 50Hz±3 5.2KVA

5 - Overall dimension L880*W880*H720mm ( not include the display holder)

6 - Locating way V-shaped groove, PCB holder can adjust any direction of X, Y

7 - Temperature controlling

(high precision K-sensor)(Closed Loop), UP and down can test the temperature independently

8 - Large PCB size 450*430mm

9 - Small PCB size 10*10mm

10 - Chip zoom multiple 2-50 multiple

11 - Weight of machine 85kg

Want to know more information about the bga rework station, please leave us your inquiry, or contact us via e-mail, thank you friends!
