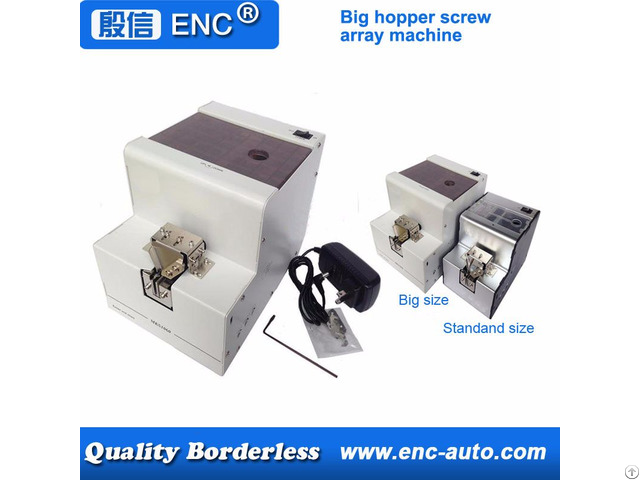

Big Hopper Screw Array Arrangement Machine 2 3 Times - China

Features:

1)Little vibration and low voice can make a quiet environment for workers.

2)The design of separating rail allows free adjustment,It can meet Screw M1.0~6.0mm.

3)The special design of the structure makes feeding fast and stable without.

4)Can be used with screwdriver,It can improve the efficiency of screw feeding much.

5)The feeding and charging speed can be adjusted freely according to your requirement.

6)This machine is suitable for both special 1: 1 short screws and screws with washer.

Big capacity,It is two times than the standard model of AS-1050B.

Model and specifications:

Model: ENC-1060B

Applicable screw thread diameter: M1.0~6.0 mm

Applicable screw head type: Standard screw head/Screw head with flat washer/screw head with spring washer/Screw head with flat washer and spring washer (Reference above)

Applicable material of screw head: Iron or the material which can be attracted by the magnet

Applicable length of screw(Max.

): 25mm

Applicable length of screw(Min.

): Single screw: Diameter x 1.0/Screw with spring washer: diameter + (0.5 x diameter)/screw with spring washer and flat washer: diameter + (1.1 x diameter)

Output speed: 2 pcs/second

Protection/Recovery/Fu nction: Overload protection circuit, Reverse power polarity prevention circuit

Input voltage: AC110~240V, 50/60Hz

Output voltage: 12VDC 1A

Overall dimension(L*W*H): 235*165*180mm

Weight(kg): 4.8kg

Accessories: Operation manual, AC controller, Hexagon wrench (Reference below)
