Bsmj Hy111 Electrical Capacitor Three Single Phase - China

Description

Features

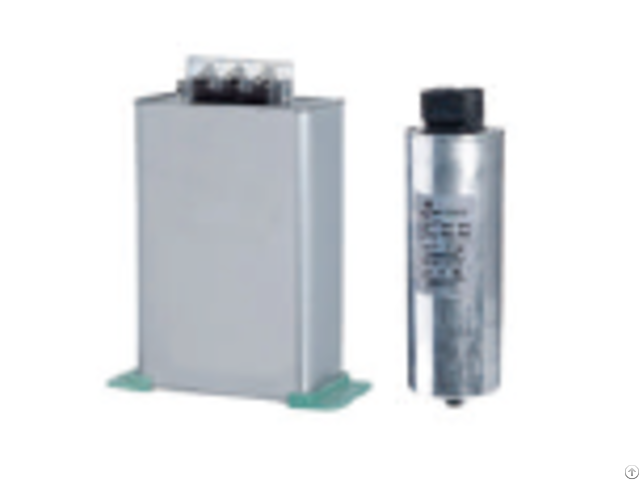

BSMJ/HY111

Electrical Capacitor

Three phase / Single phase

BSMJ/HY111 power capacitor used to

compensate for power system inductive load, power factor, improve voltage quality, reduce

line consumption.

Use semi-solid impregnant, no oil leakage, is

a new generation of environmentally friendly

products.

With self-heal design, prevent over-voltage

damage, standard 400V/600V working

voltage from 5KVAR to 30KVAR, accept

customized specification order

·Rated output: 1~60Kvar

·Rated frequency: 60/50Hz.

·Rated voltage: 220VAC~690VAC, ·Excellent self-healing performance

·Lower Power Bills / Improved Power factor

·Lower Stress Heavy Duty Designs Available

·Increased durability and tolerance of

harmonics and transients

·Single phase/Three phase electrical

capacitors for power factor correction

·Temperature-25+50, humidity ≤

85%RH, and altitude lower than 2000m

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
