Bt4 0 Ble Module - Taiwan

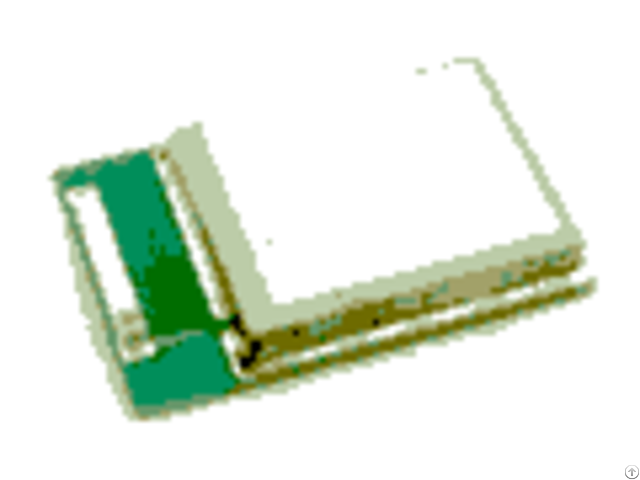

BT 4.0 BLE Module transmitter/Receiver Bluetooth module is power by CSR CSR1010 technology.

That provides a complete 2.4GHz Bluetooth technology for Bluetooth Low

Energy transmission.

The BT 4.0 BLE Module is compliant with Bluetooth specification, 4.0 LE and support Heart rate, Glucose meter, Blood Pressure, Thermometer, Proximity tag, Phone alert, status and notification profile.

It is the 7.5dBm module with build in antenna.

Reduce the effort on the RF section when the engineer designs it into the system.

Smart Design also customize the software to meet the requirement from customer.

* CSR BlueCore1010 Chip.

* * Bluetooth 4.0 LE Compliant.

Bluetooth 7.5dBm RF output power.

10~50 meters transmission distance.

* 5 GPIO

* 3 AIO

* 10 bit ADC

* UART digital interface.

* Fully configurable with simple AT style commands over UART and Bluetooth connections.

* Build in high performance chip antenna.

* Dimension: 21.0 X 12.7 X 3.0mm.

* LGA(Land Grid Array) pads reliable PCB mounting

* Support Dual Mode: Master and Slave mode

* CE, FCC certified

* Voltage Range : 3.3V±0.2V

* Operating Temperature Range : -40C ~ 85°C

* Storage Temperature Range : -40°C ~ 85°C

* Relative Humidity (Operating) : <=90%

* Relative Humidity (Storage) : <=90%
