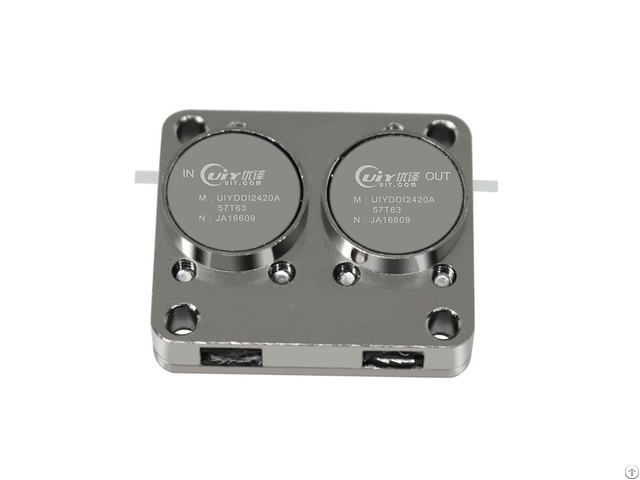

C Band 5 7 To 6 3 Ghz Rf Dual Junction Isolators High Isolation 45db - China
price: 60.00 Dollar US$
Model Number: UIYDDI2420A57T63
Frequency Range: 5.7~6.3GHz
Bandwidth: 20%
Insertion loss: 0.6dB
Isolation: 45dB
VSWR: 1.25
Forward Power: 30W
Reverse Power: 5W
Temperature: -40~+85°C
Dimension: 24*20*8mm Our products RF Isolators
RF Circulators
RF Filters
Power Divider/Splitter
Duplexer/Triplexer
Hybridge Combiner
Coaxial Termination
Coaxial Attenuator
Directional Coupler
Waveguide to Coaxial Adapter
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: July 6, 2023
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
