C Band Rf Broadband Isolator 4 0 8 0 Ghz N Sma - China

price: 65.00 Dollar US$

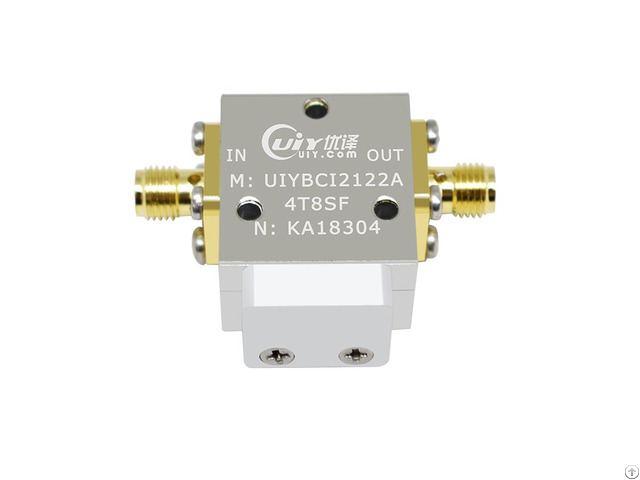

C Band Rf Broadband Isolator 4 0 8 0 Ghz N Sma

Products Photos Catalog Band Broadband Photos Catalog

Model Number: UIYBCI2122A

Frequency Range: 4.0~8.0 GHz

Bandwidth: Full

Insertion Loss: 0.5dB

Isolation: 18dB

VSWR: 1.3 Forward Power: 100W

Reverse Power: 20W

Connector Type: N SMA

Temperature: -55~+85℃

Dimension: 21*22.5*15mm

Frequency range 56MHz to 40 GHz, up to 2000W power

Military, space and commercial applications.

Low insertion loss, high isolation, high power handling.

Custom design available upon request.
