Cable For Charging Equipment Fire And Cold Resistance Dc Pile - China

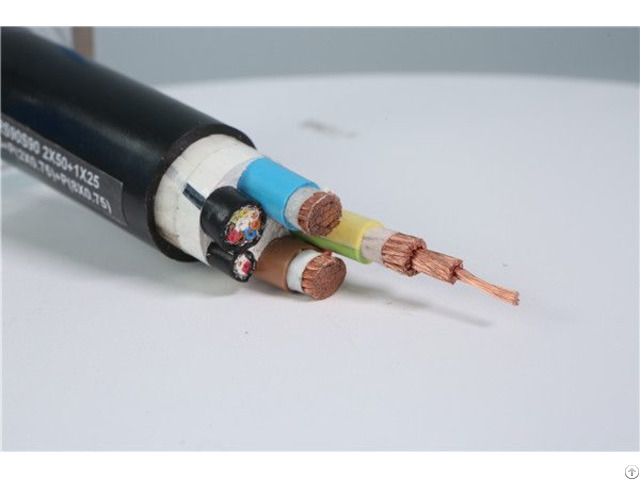

Cable for charging equipment fire and cold resistance DC charging pile cable

Production application

Used in electric vehicle charging equipment or charging ports, vehicle charge and discharge warning and control system with charging.

saturation, security warning control signal transmission function.

1 - Operating temperature: -25ºC~50ºC, max cable temperature 70ºC.

2 - Rated Voltage: AC 450/750V, DC 1000V.

3 - Allowable short circuit the temperature: 200ºC in 5seconds.

4 - Insulation and sheath material is halogen-free thermoplastic elastomer with perfect flexibility, complied with EU ROSH standard.

5 - Resistant to cold, wear, oil, acid&alkali, water and UV.

6 - Resistant to load stress&thermal stress.

7 - Pass single core vertical burning test (2PfG 1908), good performance of fire retardant.

Production advantages:

1 - Perfect flexibility, mini bending radius 5xOD(Cable nominal diameter), easy installation and usage.

2 - High performance of load stress&thermal stress, pass vehicular load test, high temperature and pressure test, crack-resistant test.

3 - Good oil-resistant property(Resistant to mineral oil, fuel oil and gasoline).

4 - Good environmental resistance: Pass UV-resistant test.

5 - Perfect low-temperature toughness: Pass -35ºC low-temperature bending test, -35ºC low-temperature extension measurement test, -25ºC low-temperature impact test.

Company Contact:

• Posted By: Shanghai Hongsheng Wire and Cable Co Ltd

• Phone: 86-021-57599997

• Address: No. 4769, Jinqian High Way, Fengxian district, Shanghai,China, shanghai , shanghai , China

• Email:

• Website: http://en.shhsdl.com.cn

• Business Description: Contact person: Shirly Cao

  Phone: 18116035742

  Sky pe ：18116035742

  Website: http: //en.

  shhsdl.

  com.

  cn

  Company Description:

  SHANGHAI HONGSHENG WIRE AND CABLE CO., LTD., located in no.

  7, no.

  4769, Jinqian High Way, Fengxian district, Shanghai, China, is a National High-tech Enterprise and the president enterprise of Shanghai wire and cable association.

  Our company is a collection of professional research and development, design, production, sales of special wire and cable.

  Company in line with to the science and technology as the first productive force, long-term commitment to three areas of research and management--building cable, new energy cable and Industrial equipment automation cable.

  After years of development, in all areas of wires and cables have been widely recognized in the industry and good market reputation.

  So far, the company has a number of invention and utility model patents, has passed ISO9001 quality management system and 14001 environmental management system, 18001 occupational health and safety management system, China quality certification center CCC, CE, German TUV certification.

  Company's main products include: Flexible fireproof cables, Electrical automation control cable, Cable drag chain, Middle and low voltage power cable, PV cable, Charging pile cable, cloth wire and wind cable, and other series of thousands of varieties specifications.

  In addition, buyers can customize their own wires and cables according to their specific needs.
