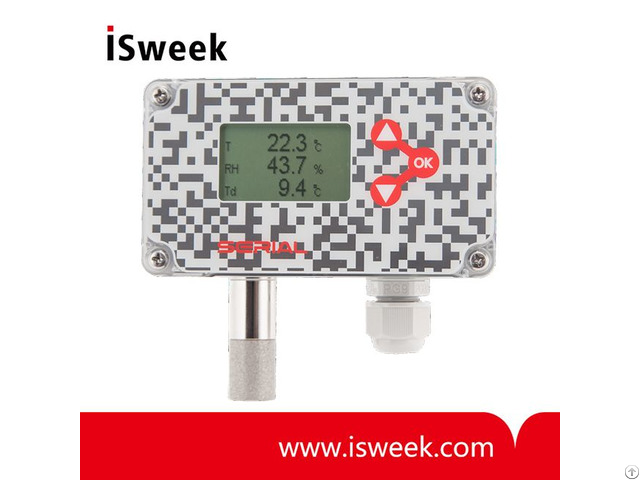

CAEL-HT Series Multi-function Humidity and Temperature Transmitter

/

SERIAL's latest CAEL series Temperature and Humidity transmitter meets the harsh environmental requirements for temperature and humidity measurement.

Via temperature and relative humidity values, the output can be calculated dew point temperature, absolute humidity, wet bulb temperature, the specific enthalpy and other parameters of humidity.

CAEL series Temperature and Humidity transmitter supported wall mount type, duct type and remote probe type.

Metal probe provides a high temperature, mechanical stress, pressure and withstand harsh environments generated by the fine waterproof housing can avoid environmental contamination and prevent condensation generated.

/

Parameter values measured through the two analog output channels, the output may be a current or voltage output.

You can simply establish a network by RS485 connection to achieve remote monitoring and data logging, measurement data through the storage device for analysis and processing.

/

LCD monitor would displays three measurement parameters at the same time, or the font is enlarged for single display to provide different visual needs.

Touch buttons without having to open the housing can be set a one point adjustment for temperature and humidity, output selection, range setting, adjustment parameters, and do not carry the computer in the environment field will be able to complete the setup work.

/

CAEL-HT Series Humidity and Temperature Transmitter Features

• Remote probe w/M12 connector

• Metal probe reduce electromagnetic interference

• 2-wire 4-20mA with selectable physical quantity

• 0 - 100%RH measurement, temperature range up to +120°C (248 °F)

• Probe pressure up to 10 bar

• Display and touch buttons for convenient operation

• Excellent quality and stable measurement

• IP-65 housing

• 1-point user adjustment

• Analog output and RS485

• MODBUS RTU protocol with integer and floating type

• Unit support metric or imperial

• Alarm output

• Dip switch setting

• Configure adapter support

/

CAEL-HT Series Humidity and Temperature Transmitter Applications

• Semiconductor and microelectronics industry

• Pharmaceutical industry, paper industry

• Environmental chambers, drying equipment, spraying equipment

• Agriculture, farms

• Greenhouse, storage room, cooling chamber

• Building Automation

• Environment and ventilation control
