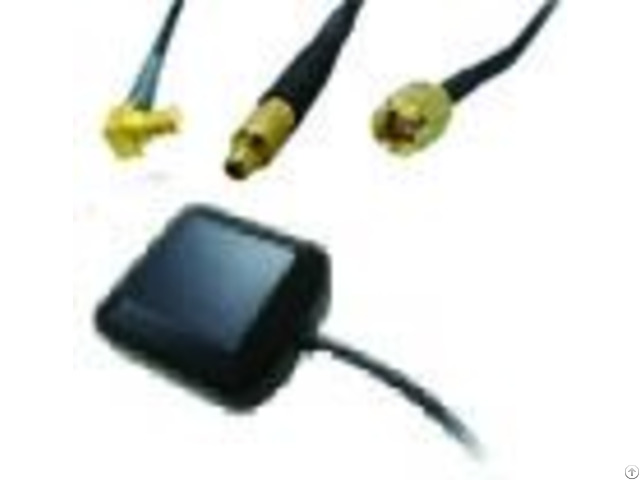

Car Gps Antenna Ct 6180 Sma 5m 180d - Taiwan

This antenna system consists of two functional blocks, the LNA portion and the patch antenna.

* Operation Temperature：-30℃ to + 80℃

* Storage Temperatur：-40℃ to + 100℃

* Relative Humidity：40% to 95%

* Operation Voltage：Min: 2.5V Typ: 3.0V Max: 5.5V

* Current Consumption：Typ: 11mA Max: 15mA @3.0V

* Frequency Range：1575.42 ± 1.023 MHz.

* Bandwidth：15 MHz min.

( Return loss –10 dB )

* GAIN：at Zenith : + 5.0 dBi Typ.

at 10° Elevation: -1.0 dBi Typ .

Mounted on the 70mm*70mm ground plane.

* Polaration：RHCP

* Axialration：3.0dB Max Mounted on the 70mm*70mm ground plane.

* Frequency Range：1575.42 ± 1.023 MHz

* Gain：28dB Min.

30dB Typ.

( + 25 ℃± 5℃)

* Noise Figure：1.6 dB Max.

( + 25 ℃ ± 5℃) @ 3.0V

* Output Impedance：50Ω

* RF Cable RG174, ψ2.7 ± 0.2mm, Black

* Cable Length : 5M ± 5cm

* RF Connector : SMA 180°(M)

* Frequency Range : 1575.42 ± 1.023 MHz

* Gain : at Zenith : Typ 35 dBi – (cable loss) mounted on the the 70mm*70m ground plane

* Output Impedance : 50Ω

* Output VSWR : 2.0 Max
