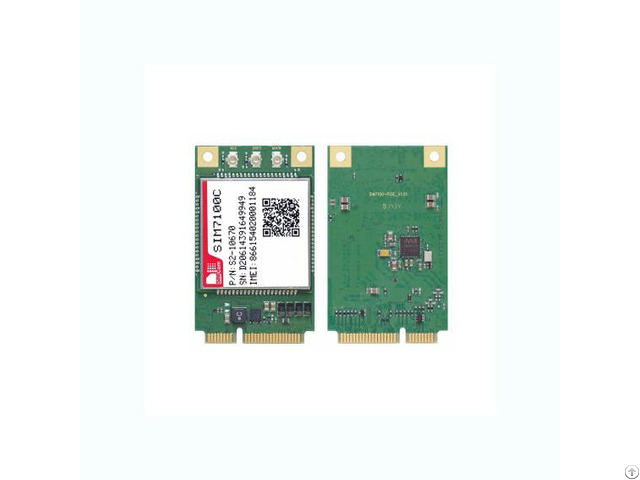

Cat 3 Simcom Sim7100c Lte Mpcie - Taiwan

SIMCom presents an ultra compact and reliable wireless module SIM7100C which is based on Qualcomm MDM9215 multiplemode LTE platform.

SIM7100C is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/ WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core: ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 cores, allowing customer to benefit from small dimensions and cost-effective product solutions.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc.

With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTT PS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer`s applications.

General features

* Four-Band TDD-LTE B38/B39/B40/B41

* Tri-Band FDD-LTE B1/B3/B7

* Dual-Band TD-SCDMA B34/B39

* Dual-Band UMTS/HSDPA/HSPA+ B1/B5

* Tri-Band GSM/GPRS/EDGE 850/900/1800 MHz

* Control Via AT Commands

* Supply voltage range: 3.4V~ 4.2V

* Operation temperature: -40°C to +85°C

* Dimension: 50.95 X 32 X 4.95 mm

* Weight: 7g

* GNSS gpsOne Gen 8B;standalone;assisted, XTRA; Support for Data transfer

* TDD-LTE/FDD-LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps

* TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps

* TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps

* HSPA+ - Uplink up to 11 Mbps, - Downlink up to 42 Mbps

* UMTS - Uplink/Downlink up to 384Kbps

* EDGE Class: - Max.

236.8Kbps(DL), Max.

236.8Kbps(UL)

* GPRS - Max.

85.6Kbps(DL), Max.

85.6Kbps(UL)

* CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call Other features

* USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8

* USB Driver for Windows CE/Mobile

* USB Driver for Linux 2.6/Android

* USB Driver for MAC

* RIL supporting for Android/Windows CE/Mobile

* Automatic installation

* Linux API SDK

* Firmware update via USB

* TCP/IP/IPV4/V6 Multi-PDP, MT PDP

* FTP/FTPS/HTTP/HTTPS/SMTP/ POP3/DNS

* Jamming detection support

* Gobi SDK to the Win7/Win8/Linux

* Source code of the PC manager of the device for reference Interfaces

* USB2.0

* UART

* SIM card

* SPI

* I2C

* Keypad(5*5)

* Constant current sink

* GPIO

* RTC

* ADC

* PCM

* SDIO
