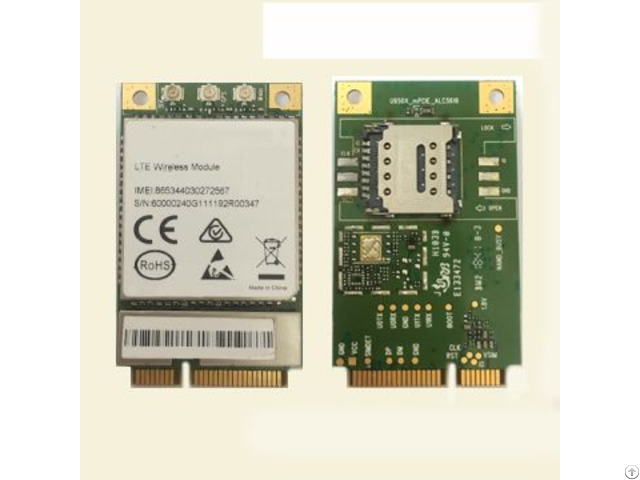

Cat 4 Lte 4g Mini Pcie With Sim Card Holder - Taiwan

4G with SIM card holder is a wireless module which is designed for the global market.

It is a consumptive product; It can be designed in many kinds of applications which can work on LTE-FDD/UMTS/GSM/GPS/GLON ASS(Optional) network.

On LTE-FDD network, 4G with SIM card holder enables connect to the Internet at DL data speed up to 150Mbps and UL data speed up to 50Mbps.

In the area where LTE service are not available, 4G with SIM card holder still enables reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.

4G with SIM card holder provides SMS, MMS, Phonebook functions as well as high speed access, and also audio function.

It can be designed in many kinds of applications.

Such as Data card, Video monitor, Tablet, Electric-book, MID, Vehicle equipment, etc.

General features

* EDGE/GPRS multi-slot class 12

* Compliant to GSM phase 2/2+

* Output power: - Class 3 (0.25W) for LTE/UMTS - Class 4 (2 W) for GSM 900 - Class 1 (1 W) for GSM 1800

* Control via AT commands (3GPP TS27.005/3GPP TS27.007 )

* Supply voltage range 3.3V- 4.2V

* Low Power consumption - Sleep mode: 5mA - Power down: 50 μA

* Dimensions: 51.0×30.0×4.6mm

* Operation Temperature: -40°C to +85°C Band Configuration

* LTE-FDD Band 1/3/5/7/8/20/28

* UMTS Band 1/5/8

* GSM Band 3/8 Specifications for GPS

* GPS frequency: 1575.42MHz

* At least support 44 channel

* Location accuracy: < 10m

* Sensitivity - Acquisition: -158dBm - Tracking: -162dBm

* TTFF - Cold Start: 60S - Warm Start: 45S - Hot Start: 15S Interfaces

* RF connector

* PCI Express® Mini Card Interface - Power supply - USB 2.0 high speed - UICC/SIM/UIM card interface 3V, 1.8V - UART - Analog Audio - PCM

* Antenna connector

* SIM Card Holder Specifications for data

* Support Release 9 Category 4

* LTE-FDD up to 150 Mbps DL, 50 Mbps UL

* DC-HSPA+ up to 42Mbps DL, 5.76Mbps UL

* EDGE up to 237Kbps DL, 118Kbps UL

* GPRS class 10: 85.6kbps DL, 85.6kbps UL

* CSD up to 14.4 kbps

* Transparent mode

* PBCCH support

* PPP-stack

* Coding schemes CS 1, 2, 3, 4

* FOTA

* TCP/IP

* NDIS Specifications for SMS

* Point-to-point Mo and MT

* SMS cell broadcast

* Text and PDU mode GLONASS(Optional):

* GLONASS frequency: 1601.7MHz

* At least support 44 channels

* Location accuracy: ＜10m

* Sensitivity - Acquisition: -155dBm - Tracking: -160dBm

* TTFF: - Cold Start: 60s - Warm Start: 45s - Hot Start: 15s Additional features

* VoLTE

* Phone book

* PCM and analog Audio

* DTMF
