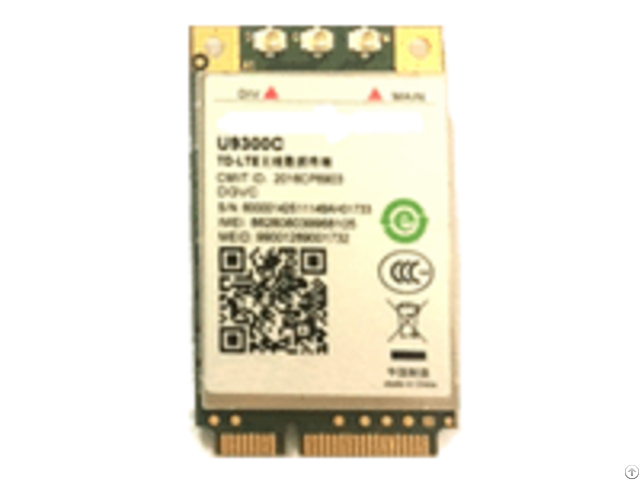

Cat4 4g Lte Module U9300c Pcie - Taiwan

U9300C is a wireless module which is designed for the global market.

It is a consumptive product; It can be designed in many kinds of applications which can work on LTE-TDD/LTE-FDD/TD-SCDMA/ UMTS/EVDO/EDGE/GPRS/GSM/C DMA/GPS/BDS network.

On LTE-TDD/LTE-FDD network, U9300C enables connect to the Internet at DL data speed up to 150Mbps and UL data speed up to 50Mbps, in the area where LTE service are not available, U9300C still enables reliable and secure data connect over 3G(TD-SCDMA/UMTS/EVDO) or 2G(EDGE/GPRS/CDMA) network.

U9300C provides SMS, MMS, Phonebook functions as well as high speed access, and also audio function.

It can be designed in many kinds of applications.

Such as Data card, Video monitor, Tablet, Electric-book, MID, Vehicle equipment, etc.

General features

* EDGE multi-slot class 12

* GPRS multi-slot class 10

* Compliant to GSM phase 2/2+

* Output power: - Class 3 (0.25W) for

* LTE/TD-SCDMA/UMTS - Class 4 (2 W) for GSM 850/900 - Class 1 (1 W) for GSM 1800/1900

* Control via AT commands (3GPP TS27.005/3GPP TS27.007 )

* Supply voltage range 3.3V- 4.2V

* Low Power consumption - Sleep mode: 5mA - Power down 50 μA

* Dimensions: 51.0×30.0×4.6mm

* Operation Temperature : -40°C to +85°C Band Configuration

* LTE-TDD Band 38/39/40/41

* LTE-FDD Band 1/3/5/8

* TD-SCDMA Band 34/39

* UMTS Band 1/8

* EVDO BC0

* CDMA1x BC0

* GSM Band 3/5/8 GPS/BDS(BeiDou)

* GPS frequency: 1575.42MHz

* At least support 44 channels

* Location accuracy: ＜10m

* Sensitivity - Acquisition: -158dBm - Tracking: -162dBm

* TTFF - Cold Start: 60S - Warm Start: 45S Additional features

* VoLTE

* Phone book

* PCM and Analog audio

* DTMF

* TTS Specifications for data

* Support Release 11 Category 4

* LTE-FDD up to 150 Mbps DL, 50 Mbps UL

* LTE-TDD up to 150 Mbps DL, 50 Mbps UL

* TD-SCDMA up to 4.2 Mbps DL, 2.2 Mbps UL

* DC-HSPA+ up to 42Mbps DL, 5.76Mbps UL

* 1xEV-DOrA up to 3.1Mbps FL, 1.8Mbps RL

* EDGE class 12: 296kbps DL, 236.8kbps UL

* GPRS class 10: 85.6kbps DL, 85.6kbps UL

* CSD up to 14.4 kbps

* Transparent mode

* PBCCH support

* PPP-stack

* Coding schemes CS 1, 2, 3, 4

* FOTA

* TCP/IP

* NDIS Specifications for SMS

* Point-to-point MO and MT

* SMS cell broadcast

* Text and PDU mode Interfaces

* RF connector

* PCI Express® Mini Card Interface - Power supply - USB 2.0 high speed - UICC/SIM/UIM card interface 3 V, 1.8 V - UART - Analog audio - PCM

* Antenna connector Protocols

* TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/

SMTP*/ SMTPS*/ MMS/ FTPS*/ NTP/

PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT*
