Cb212 Power Factor Controller - China

price: 129.00 Dollar US$

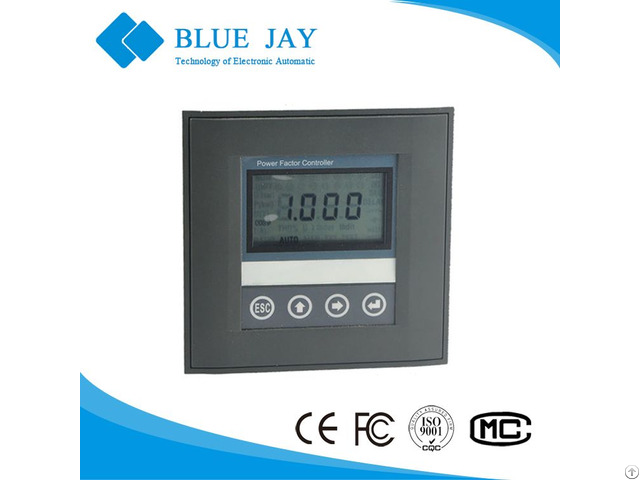

Cb212 Power Factor Controller

Products Photos Catalog Cb212 Power Factor Photos Catalog

Description CB-212 is advance three phase 3 wire APFC, display provide user-friendly interface and

ease of access to parameters for manual

setting, built-in power analyzer, allowing the

instantaneous display of any electrical

parameter (voltage, current, reactive power, harmonics, etc.

With THD protection

function, not affected by the harmonics, can

protect capacitor from harmonic interference.

Max 16 step control, 5A/250V relay output or

12VDC output.

Optional RS-485

communication port, easy for user connect to

PLC and build SCADA system.

Higher measurement accuracy(0.5) and

system stability, it is cost effective ideal for

OEMs and panel builders solution.

Features ·Balance load phase compensation type

·Provide current, voltage, COS

measurement and display

·93*70mm LCD display screen

·Support max 16 control channel (default 12

channel)

·Used in three-phase electrical power gird

·Anti-harmonic design, can protect

capacitor in high harmonic transient

·Optional relay or thyristor output

·RS485 port optional

·415VAC self power supply(690V can be

customized)


Company Contact:


  • Phone: (+0086) 023-67628702

  • Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, Chongqing , Chongqing , China

  • Email: Email


Published date: July 17, 2018 - Modified date: July 17, 2018

  • Business Description: Blue Jay is a high-tech enterprise.

    Focused on the design, manufacture and marketing of the electronic product, computer control equipment, communications and network equipment.

    Company offers products and solutions ranging from measuring and electrical control, quality and metering to power factor correction
