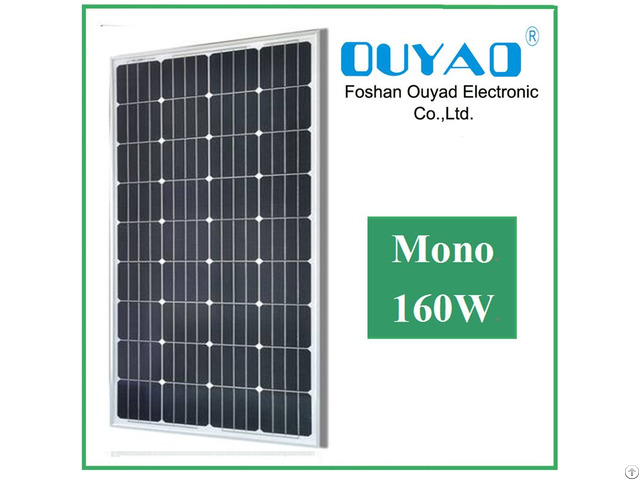

Cheap Price 160w Mono Solar Panel - China

Mono Solar Panel 160W Characteristics

1) high reliability with guaranteed +/-3% output power tolerance

2) The modules can withstand high wind-pressure, snow loads and extreme temperatures

3) Bypass diodes to minimize power loss with shading

4) High and stable conversion efficiency to ensure the highest quality

A Grade Monocrystalline Silicon Solar Cell

1) Fomat: 156±0.5mm, diagonal 200±1.0mm

2) Average thickness: 195μm ±20μm

3) Front(-): 1.5mm bus bars(silver)

Blue anti-refelecting coating(silicon nitride)

4) Backe(+): 2.5mm wide soldering pads(silver)

Back surface field(aluminiem)

Quality and Warranty

For a period of twenty‐five (25)years commencing on the Warranty Start Date, loss of power output of the nominal power output measured at Standard Test Conditions (STC) for the Product(s) shall not exceed:

For Monocrystalline A grade solar cell, 3% in the first year, thereafter 0.66% per year, ending with 81% in the 25 th year after the Warranty Start Date;

The Warranty Start Date shall be defined as the date of the Bill of Lading date

10Years Manufacturing Warranty

15Years Warranty 90% Power Output

25Years Warranty 85% Power Output

Product Information

Electrical Characteristics

ITEM NO.

S/M-160

Maximum Power at ST(Pmax)W 160Wp

Maximum Power Voltage(Vmp)V 18.6V

Maximum Power Current(Imp)A 8.48A

Open Circuit Voltage(Voc)V 22.9V

Short Circuit Current(Isc)A 9.02A

Cell Efficiency(%) 18.2%

Module Efficiency(%) 16.36%

Size of Module (mm) 1471*665*35

Solar Cell 156*156

Number of Cell(PCS) 36

Weight(KG) 23.4Kg

Power Tolerance 0~+3%

Company Information

Foshan Ouyad Electronic Co., Ltd was founded in 1998 - We are real professional manufacturer of solar panels, such as mono solar panels, poly solar panels and semi flexible solar panels and so on, covering an area of more than 20, 000sqms.

In 2014, Ouyad company are well known as Guangdong Province High Technology Corporation.

For right now, we have our own independent workshop, supply complete solar power system, including solar panel, battery, controller, inverter, etc.

Our products are authorized by CE test system and the ISO9001: 2008 International quality system certification.

For more details, pls feel free to contact me.
