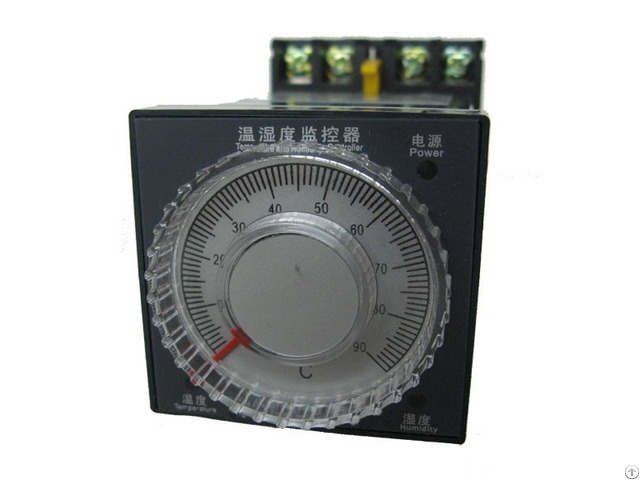

Chongqing B W1 K1 Temperature Controller - China

B series temperature controller with completed

FUZZY algorithm control fan or heater to maintain

sensible & latent capacity follows temperature curve

by automatically.

user can adjust temperature value very easily to

use dial, and a LED indicator to show the relay

status.

Function & Feature

·DIN(48X48mm) Temperature Controller

·Control accuracy 1 ℃

·Built-in digital filter reduce interfere

·Self calibration technology, keep stabilization

·Switching power supply and low consumption.

·Use large capacity relay

Specification

Power supply:

110/220VAC

(others on request) 24/48DC

Voltage range 80~110% rated voltage

Power consumption <5VA

Display:

40mm Dial to set the control value

Control scale 1℃

Input:

Input route 1

Temperature sensor PT100 or customer request

Output type:

Output route 1

Relay 250VAC, 5A

Sampling rate

0.2sec
