Cls Series Ultrasonic Clear Label Sensor - China

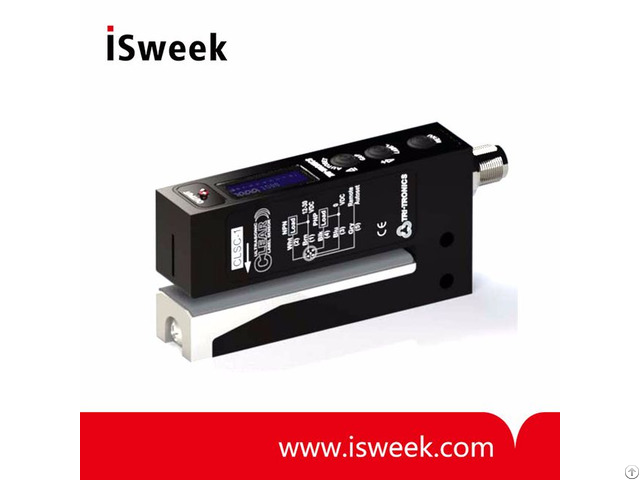

Ultrasonic Clear Label Sensor Description

The first Ultrasonic Clear Label Sensor with OLED graphic display for monitoring sensor performance.

Designed into the sensor are all the Ease-of-Use characteristics that have made TRI-TRONICS' sensors so well known in the industry.

/

Ultrasonic technology coupled with digital signal processing makes the detection of clear and opaque labels on clear or opaque backing material easy.

The introduction of the OLED graphic display in place of simple indicator lights offers the user has an unprecedented view of the sensor's performance, options, program modes, and helpful simple instructions never before offered in a clear label sensor.

A stainless steel removable gap plate and anodized aluminum housing makes this sensor rugged.

Setup is fast with one press of a button for the label and one press for the label gap.

/

Ultrasonic Clear Label Sensor Features

• OLED Alphanumeric Display

• 10 Bar Graphic Contrast Indicator

• Static and Dynamic Numerical Display

• One button AUTOSET (Gap Set)

• Tweak-able (Momentary Up/Down Adjustable)

• Available Timers and Delays

• Cable and Connector Version (M12 and M8)

• Removable Gap Plate

• High Speed (200µs) (1800'/548M per minute)

• Durable and Robust Housing

• Compatible with Existing Mounting Configurations

/

Ultrasonic Clear Label Sensor Benefits

• Easy to Set Up

• Highly Accurate and Precise

• Low Maintenance

• Affordable, Low-Cost Option

• Made in USA

• Durable and Reliable

/

Ultrasonic Clear Label Sensor Applications

• Label Rewinding

• Label Applying

• Clear, Paper, Foil, or Mylar Labels

• Splice Detection

• Fold or Crease Detection

/

Ultrasonic Clear Label Sensor Specifications

• Supply Voltage: 12 to 30 VDC • Current Requirements: 95mA @ 12 VDC, 45mA @ 30 VDC • Ambient Temperature: 4°C to 50°C (39°F to 122°F) • Response Time: 200µs • Repeatability: 125µs • Waterproof ratings: NEMA 4X, 6P and IP65

/

Ultrasonic Clear Label Sensor How to Specify

• CLS-1 - Cabled.

Advanced timer.

12-30 VDC polarity protected.

• CLSC-1 - M12 5-pin connector.

Advanced timer.

12-30 VDC polarity protected.

• CLSC-1M8 - M8 4-pin connector, Single Output with Remote Set.

Advanced timer.

12-30 VDC polarity protected.

• CLSC-1M8LE - M8 4-pin connector, NPN and PNP Output.

Advanced timer.

12-30 VDC polarity protected.
