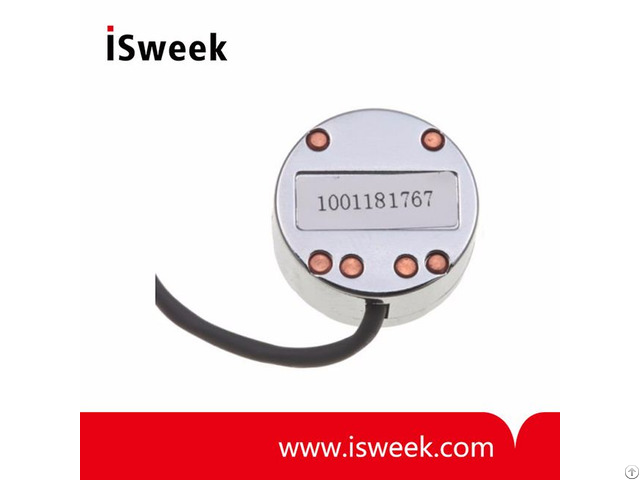

Cm 01b High Sensitivity Piezo Film Sensor Contact Microphone - China
price: check with company for price
CM-01B Contact Microphone Specifications
• High Sensitivity
• Robust
• Low Noise
• Piezo Film Technology
• Shielded Cable
/
CM-01B Contact Microphone Description
The CM-01B contact microphone uses sensitive but robust PVDF piezo film combined with a low-noise electronic preamplifier to provide a unique sound or vibration pick-up with buffered output.
The design minimizes external acoustic noise while offering extremely high sensitivity to vibration applied to the central rubber pad.
The CM-01B is ideal for detecting body sounds.
CM-01B Contact Microphone Features
• Broad Bandwidth
• High Sensitivity
• Excellent Impact Resistance
• Lightweight
• Low Cost
/
CM-01B Contact Microphone Applications
• Electronic Stethoscope
• Bone-conducted Sound Pickup
• General Purpose Contact Microphone
• Vibration/Impact Sensing
/
CM-01B Contact Microphone Performance Specifications
• Sensitivity: 40V/mm
• Resonance Frequency: 5kHz
• Supply Voltage: 4 - 30VDC
• Supply Current: 0.1mA
• Operating Temperature: 5 ~ 60°C
• Storage Temperature: -20 ~ 85°C
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: June 21, 2018
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
