Coil Contactor 24 Vdc - India

price: check with company for price

Coil Contactor 24 Vdc

Products Photos Catalog Coil Contactor Vdc Photos Catalog

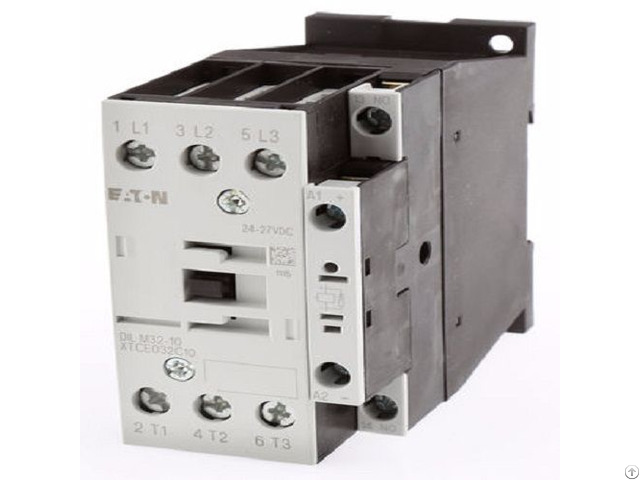

xStart 3 Pole, 32 A, 15 kW, 24 VDC Coil Contactor - DILM32-10

FEATURES:

1 - Type : DC Operated Power Contactor

2 - Model No.

: DILM32-10-277277

3 - Series : Dilm

4 - Rating Current (A) : 32 A

5 - Pole : 3.0

APPLICATION: -

1 - Industrial;

2 - Power Management;

3 - Automation & Process Control

DESCRIPTION: -

Coil Voltage 24 V dc

Contact Current Rating 32 A

Number of Poles 3

Series DILM

Pole and Throw Configuration 3P

Normal State Configuration 3NO

Power Rating 15 kW

Number Of Auxiliary Contacts 1

Contact Voltage Rating 400 V ac

Length 85mm

Width 56mm

Depth 138mm

Dimensions 85 x 56 x 138 mm

Maximum Operating Temperature +40°C

Operating Temperature Range -25 → +40 °C

Terminal Type Screw

Minimum Operating Temperature -25°C

Range XStart

POPULAR PRODUCTS : contractor ac5 rating, contractor ac rating, contractor and overload, contractor accessories, contractor and enclosure, contractor ac3 25a.


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email

Published date: November 8, 2016 - Modified date: November 8, 2016
