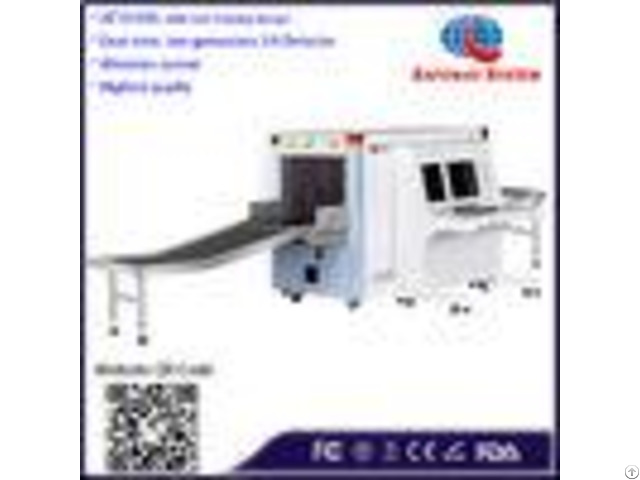

Commercial Museum X Ray Baggage Scanner At6550d With Guarantee Iso1600 Film - China

Dual View Airport X-ray Machines/X-ray Baggage Scanner At6550d with Guarantee ISO1600 Film General Specification: Film Safety : guarantee ASA/ISO1600 Film X ray Dose per inspection <1.25Sv X-ray Leakage: <0.5 Sv/h (at a distance of 5cm From external housing) Noise level: 60 Db Monitor: 2 sets 19 inch High Resolution LCD One-key shutdown control: rotate the key to shut down the machine; it is safety, easy and convenient; Self-diagnosis function: Give message automatically in multifunction for prompt maintenance; TIP software; Ray should transmitted under automatic control; avoiding the error; Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time; Operating Environment: Operation temperature/Humidity: 5-45/10%-95%(non-condensi ng) Storage Temperature/Humidity: -20to 60/ 5%-95%(non-condensing) Operation Power: 220VAC(10%)503Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC) Power Consumption: 1.0KW (max), 0.7KW(working) Noise: <58db X-ray Generator Anode Voltage: 160kv Anode power: 0.4-1.2mA adjustment Generate angle: 80 degree upward Beam Direction: Downward and Sideward; Technical Principle: Dual-energy X-ray Imaging; X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep Monitor: High Resolution Color, LCD Accord, 19 inch Image Display: High resolution of 1024 * 1280 pixel Image Grey Level: 4096 Miscellaneous Functions: Time/date display, counters, user management, system-on/X-ray timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log system standby and stimulant training, ADS etc.

Images process: 24bit real time processing, 4colors analysis, Images displayed marked date and ID NO, Count the number of bags.

Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Image Recall: All preceding images recallable, retrieval.

Help detect Explosives: Explosives alarm and highlight according to atomic number signature Network Applications: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.

High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands Threat Image Projection: Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability Image Archive: Up to 100, 000 images stored automatically, enable transferring to USB disk, andconverting to JPG, BMP and other general formats Applications: # Airports, # Transport terminals, # Buildings, # Factories (to find needle in clothing, shoes, bags), # Courthouses, # Embassies, # Military installations, # Prisons, # Hotels, # Schools, # Convention centers, # Security checkpoints, # Special events location Product pictures:
