Compact Volume High Low Temperature Sensor Strong Protection Distribution - China

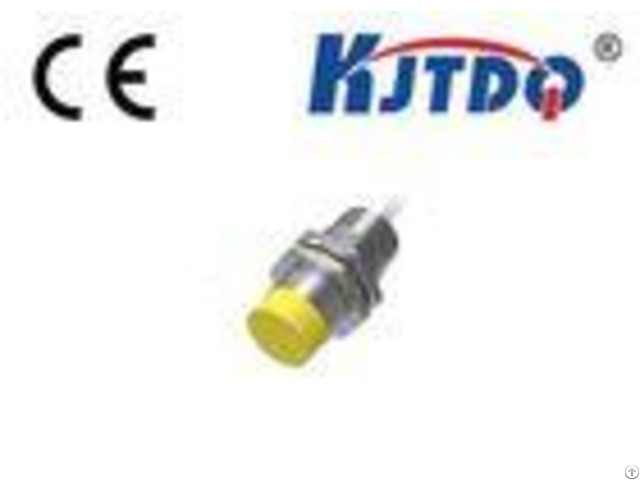

M30 High temperature inductive proximity sensor Quick Details: Name: M30 High temperature proximity sensor Output: PNP / NPN, NO/NC.

Distance: 8mm(non-flush) Connection: Cable 2m(PTFE), 3 wires/ 4wires Specification: - - - - Mounting | Non-Flush | SN | 10mm | Power supply | 10-36V DC | Housing size | M30*65 | Thread size | M30*1*40 | Output | NPN/PNP NO/NC | Temperature drift | 10% | Hysteresis | 1-20% | Repeat accuracy | 5% | Load current | 200mA | Residual voltage | 2.5V | Consumption current | 10mA | Protection circuit | surge, overload, short-circuit, reverse polarity | Indicator | Yellow LED | Ambient temp.

| -25 ~ 180C | Ambient RH | 35-95% | Frequency | 500Hz | Protection degree | IP67 | Housing material | Nickel-copper Alloy | Connection | Cable 2m | - - - - Application: High temperature proximity sensors are mainly used in high temperature working areas, such as Casting workshop, Steel workshop, Barbecue workshop, Carbon fiber equipment, Food processing workshop, Galvanizing equipment, Glass manufacturing workshop, Stamping boiler, etc.

Competitive advantage: 1) Multiplicity appearance 2) Compact volume 3) High repeat orientation precision 4) High temperature can up to 230 5) Strong protection distribution FAQ: Q: Do you have different style ? A: We produce our own brand sensor(KJT), also provide OEM + ODM service.

Q: How can we become your sale distributor ? A: If you can sell our products USD 5, 000 to USD 60, 000 per year, you could be one of our distributors in your city or area.

We have price protection policy in every area.

We still looking for more distributors, do you like to join us? Q: Can we have our logo or company name to be printed on your products or the package ? A: Yes, you can.

Logo or imprints can be printed on our products.

The minimum quantity is 500 pcs per logo.

You can send us the artwork by email in JPEG or TIFF format.

If you want your logo and company name to be printed on the package for the products(custom design package).

Such as gift box and paper card, the MOQ is 500 pcs per model.

You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats
