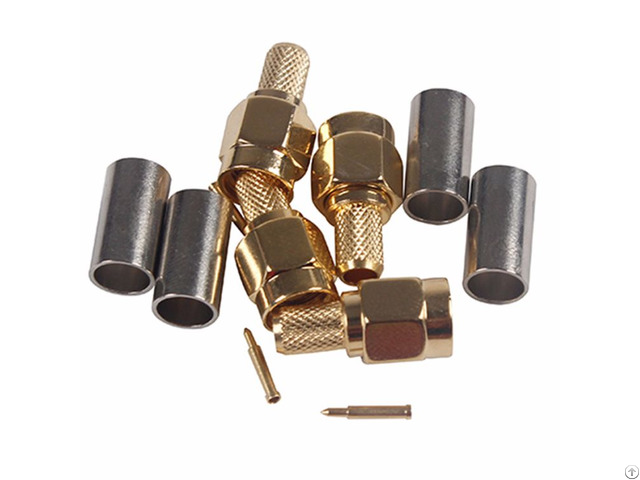

Connector Sma Rf Connector - China
price: 0.50 Dollar US$
Model：FT-SMA-KY1.5-G01
Major Technical Characteristics
Type：SMA-KY1.5-G01
Impedance：50Ω
Frequency Range：DC~12.4GHz(Semi-R igid Cable DC-18GHz)
Center conductor retention force：≥0.28 N
Insertion Loss：≤0.15dB/6GHz
Voltage Standing Wave Ratio：Straight Flexible Cable ≤1.10+0.02f / Semi-Rigid Cable≤1.07+0.018f
Right angle Flexible Cable ≤1.20+0.03f / Semi-Rigid Cable≤1.17+0.02f
Durability(mating)：⠉¥500(cycles)
Cable：RG174 Cable
Material & Plating
Body：Brass Gold plated
Pin contact：Brass Gold plated
Socket contact：Beryllium-coppe r Customized) Gold plated
Resilient contact：Beryllium-coppe r Gold plated
Insulator：PTFE
Crimp ferrule：Copper alloy Nickel or gold plated
O-ring sealing： 6146 silicone rubber
Company Contact:
- Posted By: FUTAI HK Co.,Ltd
- Phone: 86-18474430030
- Address: NO.3,Xingye 3rd Road,Southwest Industrial Park,Sanshui Area, Foshan , Guangdong , China
- Email:
- Website: http://www.futai8.com
Published date: September 10, 2019 - Modified date: September 10, 2019
- Business Description: Futai Hongkong Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.
Our subsidiary –Jinrei Communication co., ltd is located in are three catagories: , RF Connector , Cable Assembly and Antenna.
Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are includGaoqiao, Danyang City ,Jiangsu.
Our major products ing interface cables (with U.
FL, H.
FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
The corporation has passsed ISO9001-2000 certification and ISO14001 in 2004 - All of our products and raw materials are in line with the EU ROHS certification.
Our Professional R&D staff develop and research latest designs to meet global market.
Company purpose: Technological Innovation, Pragmatism, Customer Satisfaction.
Quality principal: Continuous Improvement, Become the Best.
We are looking forward to establishing business relations with clients from all over the world.
