Current Type Dual Axis Tilt Sensor - China

Introduction

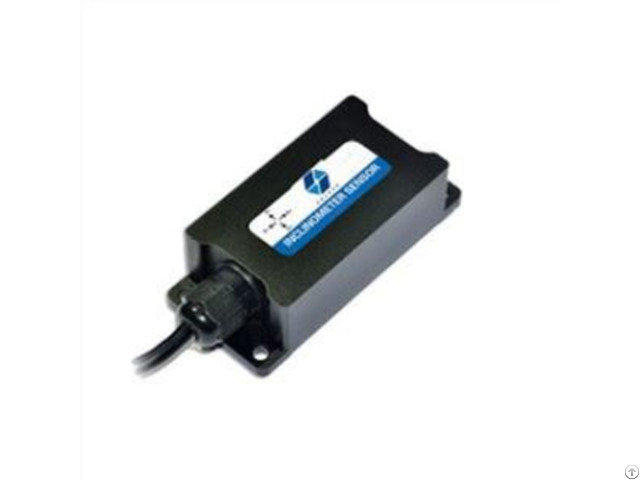

ER-TS-4258CU Current Type Biaxial Tilt Sensor is a small volume MEMS biaxial current output tilt sensor, output current 4~20mA, 0~20mA, 0~24mA optional.

Due to the built-in micro-electromechanical production process inclination device, the product is small in size, low in power consumption, industrial-grade working temperature is -40~+85℃, and long-distance transmission can reach more than 2500 meters.

The strong ability to resist external electromagnetic interference makes it suitable for long-term work in harsh industrial environments.

The product adopts the principle of non-contact measurement, can output the current attitude inclination in real time, the accuracy can reach 0.1°.

The product is simple to use and does not need to find the relative change of two surface installation, which is the ideal choice of industrial equipment and platform measurement.

Features

Biaxial tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Output 4~20mA, 0~20mA optional

Wide voltage input DC 9~36V

Wide temperature working -40~+85℃

Range: 0~±90°(selecta ble)

High vibration resistance>3500 g

IP67 protection level

RS232 can be output simultaneously, RS485 customizable

Volume (90*40*27mm) (customizable) Applications Railway gauge

Satellite solar antenna positioning

Tractor, deep tillage machinery

Mining machinery, oil logging equipment

Medical equipment

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams
