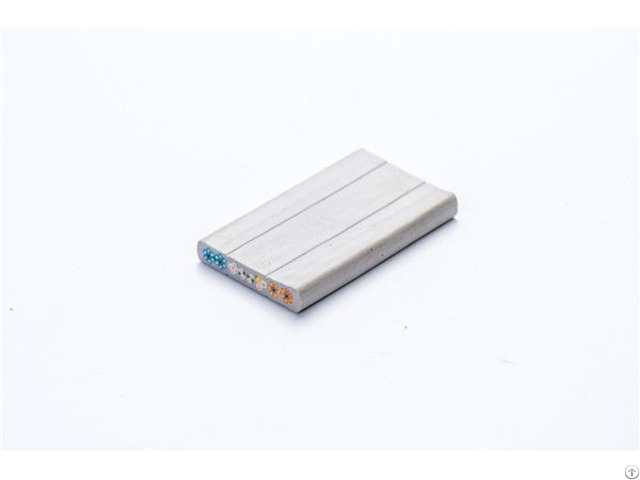

Custom Soft Blue White Ffc Flexible Flat Cable 1mm - China

Custom soft blue white FFC flexible flat cable 1mm FFC flat cable

Flat cable is manufactured by standard organization and is suitable for mobile electrical equipment with rated ac voltage of 450V/70V and below.

Flat cable structure is especially suitable for frequent bending occasions, without kinking and folded neatly, such as driving.

YB, YBF and YBZ can meet the needs of various occasions.

It is suitable for electrical connection between mobile electrical equipment under severe environment such as power generation, metallurgy, chemical industry and port.

USES: power conductor, insulation, tape strip, earth conductor, insulation, filling layer, control conductor, insulation, sheath.

As a kind of multi-core cable, flat cable is first used in electronic computer and electronic instrument.

Due to its advantages such as easy bending and small wiring space, it is also widely used in civil electrical appliances such as telephone and recorder.

New flat cables are being developed to meet the different requirements.

The application of the insulating shift connector makes the end connection of flat cable very convenient and reliable.

At the same time, higher requirements are put forward for the geometrical dimensions such as the center distance tolerance, the cumulative error of center distance and the insulation thickness of flat cable.

The production process of flat cable is similar to that of plastic wiring.

In the flat cable forming unit, in addition to adding a flat cable forming device which is related to the main technique of insulating material processing, the equipment such as multi-span wire rack, cooling water tank, spark detector, tractor and coil forming machine is basically similar to the equipment used in the plastic wiring production.

The forming method of flat cable is to clip a group of core wires evenly arranged at a certain interval between two plastic films and bind them into flat cable by certain means.

Two problems should be solved when forming: one is how to produce two layers of plastic films that can bond or melt each other; the other is to ensure that a group of wire is always spaced and evenly arranged.

Company Contact:

• Posted By: Shanghai Hongsheng Wire and Cable Co Ltd

• Phone: 86-021-57599997

• Address: No. 4769, Jinqian High Way, Fengxian district, Shanghai,China, shanghai , shanghai , China

• Email:

• Website: http://en.shhsdl.com.cn

• Business Description: Contact person: Shirly Cao

  Phone: 18116035742

  Sky pe ：18116035742

  Website: http: //en.

  shhsdl.

  com.

  cn

  Company Description:

  SHANGHAI HONGSHENG WIRE AND CABLE CO., LTD., located in no.

  7, no.

  4769, Jinqian High Way, Fengxian district, Shanghai, China, is a National High-tech Enterprise and the president enterprise of Shanghai wire and cable association.

  Our company is a collection of professional research and development, design, production, sales of special wire and cable.

  Company in line with to the science and technology as the first productive force, long-term commitment to three areas of research and management--building cable, new energy cable and Industrial equipment automation cable.

  After years of development, in all areas of wires and cables have been widely recognized in the industry and good market reputation.

  So far, the company has a number of invention and utility model patents, has passed ISO9001 quality management system and 14001 environmental management system, 18001 occupational health and safety management system, China quality certification center CCC, CE, German TUV certification.

  Company's main products include: Flexible fireproof cables, Electrical automation control cable, Cable drag chain, Middle and low voltage power cable, PV cable, Charging pile cable, cloth wire and wind cable, and other series of thousands of varieties specifications.

  In addition, buyers can customize their own wires and cables according to their specific needs.
