Cwt5110 Iot Gateway Device Gprs Rtu Controller With 4 Di 4do Agricultural - China

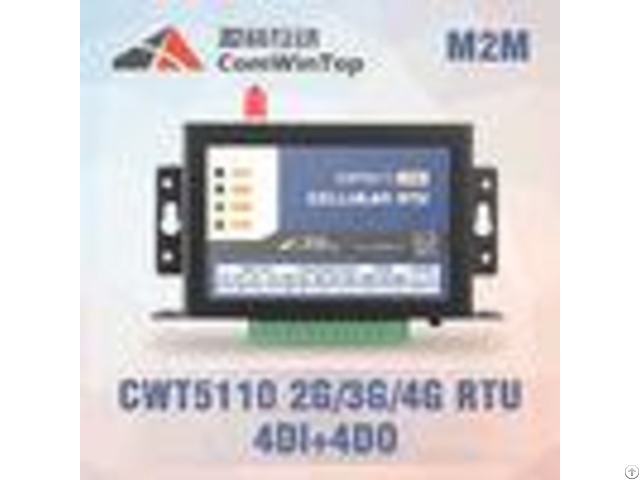

CWT5110 Industrial Iot Gateway Gprs Rtu Controller With 4 Di and 4Do CWT5110 RTU with 4 DI, 4 DO, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches.

It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the GSM/GPRS/3G/4G/Wi-Fi communication network.

It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.

Port Features - - - - Port | Qty | Features | DI (digital input) | 4 | # Accept dry contact # Can be configured as pulse counter input (counting frequency: 10Hz) | DO (digital output) | 4 | # Transistor output (drive voltage=power supply voltage, Drive current500mA # Remote or local event activate DO on/off/pulse # Remember status when power lost | RS232 | 1 | # Configuration port | - - - - Wireless network communication # Option network: GPRS, 3G, 4G, Wi-Fi # TCP/IP connect at most 4 servers(support Static IP address or domain) # Events(e.g. alarm, timer) trigger upload data # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Support two-way data transparent transmission with RS485 or RS232 SMS Communication (available for cellular version) # Preset 10 phone numbers (support distribute authority to receive sms) # Sms alarm when any IO channel triggered or out of preset normal range # Editable alarm and recover sms with time stamp # Query any IO channels status or value via sms command # Control output via sms command # Sms report any IO channels status or value on schedule # Remote setting via sms commands # Can query SIM card balance, sms forward # support power lost sms alarm and recover sms(works with inside battery) when the CWT5110 receive server's modbus command via 3G (TCP/IP IP packet ), and forward the command to RS232/RS485, and forward the modbus respond to server via TCP/IP Specifications - - - - Core | MCU | Cortex M3 32-bit ARM | Power | Power supply | 9-28V DC (Standard adapter: DC 12V/1.5A) | Consumption | 12V input Max.

150mA/Average 50mA | Network | Wireless Network | Either GPRS(or 3G/4G, need simcard) or Wi-Fi(Not need simcard) Default: GSM/GPRS (4 band 850/900/1800/1900Mhz) Option: WCDMA (3G), FDD LTE(4G) Option: Wi-Fi, 802.11 b/g security WEP/WPA/WPA2 | IO channel | Digital input(DI) | 4 channels, Dry contact trigger Can be set as counter with counting frequency: 10Hz | Digital output(DO) | 4 channels, transistor output Output drive voltage=power supply DC voltage Drive current 500mA | Series port | RS232 | 1 port, baud rate: 1200~115200dps, default 9600, n, 8, 1 option: RS485 | Other interface | SIM/UIM | Standard user card interface | Antenna | Standard SMA female interface (50) | Others | Battery | Optional lithium-polymer, 500mAh/3.7V, life: 8-20 hours | Working Environment | temperature | -30+70 | humidity | 595%(non-condensing) | Physical | Terminals | 114pin 3.81mm spacing, pluggable | Housing | Providing IP30 protection | Dimension | 956325mm | Weight | 256g | - - - -
