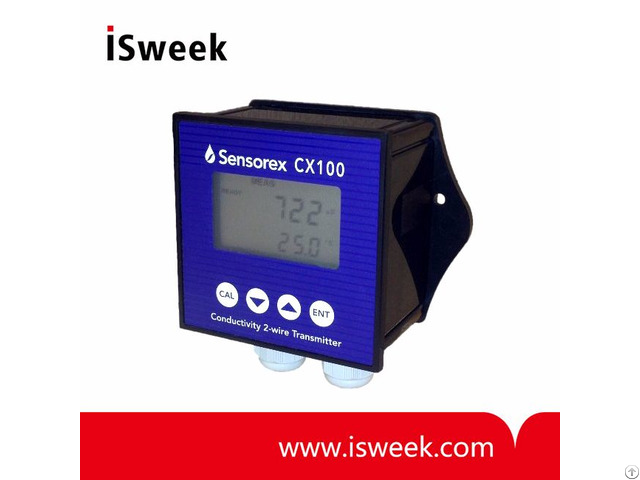

CX100 Loop-Powered Contacting Conductivity Transmitter

Item No: CX100

/

CX100 Loop-Powered Contacting Conductivity Transmitter Features

• Six selectable conductivity ranges for a wide range of measurements

• Isolated Output prevents output interference caused by electrical noise or leakage from the input source

• Out-of-range Output Current Indicator indicates an out-of-range measurement by emitting a 3.8mA output current

• Hold Output Current Indicator to indicate ‘HOLD’ mode during calibration or set up mode.

• Scaleable 4-20 mA Current Output

• Primary and secondary display for simultaneous display of Conductivity and Temperature values

• Easy Push Button Operation

• Automatic (with Pt 100) or manual Temperature Compensation

• Panel or Wall Mount, Nema 4x, IP65 Weatherproof Housing

/

CX100 Loop-Powered Contacting Conductivity Transmitter Description

This isolated output 4-20mA industrial transmitter, a sturdy microprocessor-based instrument, measures conductivity and temperature.

It transmits conductivity measurements via a two-wire power supply loop.

The industrial transmitter has many user friendly features - all of which are easily accessible via the water resistant membrane keypad.

Ideal for connecting to a PLC for advanced control systems, the transmitter can also be connected to a recorder for a low-cost documentation system.

The instrument housing is designed for panel or wall mounting.

/

CX100 Loop-Powered Contacting Conductivity Transmitter Specifications

• Accuracy: ±1% of full scale reading in respective range

• Temperature: 0 °C to 100 °C (32 °F to 212 °F)

• Temperature Resolution: 0.1 °C (0.1 °F)

• Relative Temperature Accuracy: ±0.5 °C (±0.9 °F)

• Sensor Pt100: (3 wire / 2 wire)

• Power Requirements: 12 to 24V DC, maximum 600 Ohm load

• Certifications: CE
