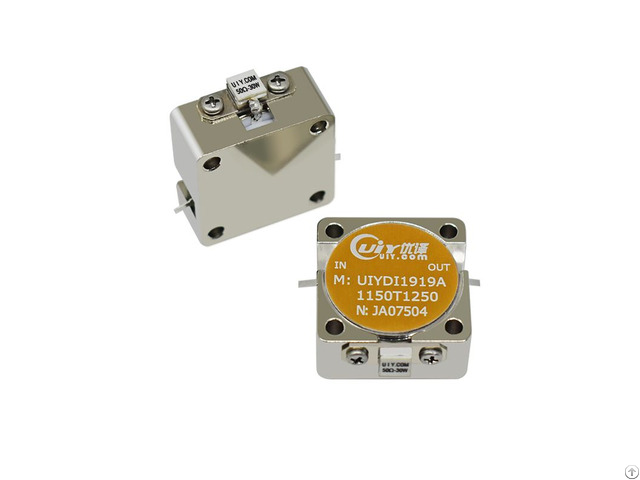

Dab L Band 1150 To 1250mhz Rf Drop In Isolators High Isolation 23db - China
price: 20.00 Dollar US$
Model Number: UIYDI1919A1150T125 0
Frequency Range: 1150~1250MHz
Bandwidth: 30%
Insertion Loss: 0.3dB
Isolation: 23dB
VSWR: 1.2
Forward Power: 100W
Reverse Power: 30W
Temperature: -30~+70°C
Dimension: 19*19*8.6mm
Military, space and commercial applications.
Electronic Musical Instrument Public Address System Radio Set Biomedical Instrumentation Optical Communication Technology Wireless Infrastructure Microwave Subsystems 2G 3G 4G 5G GSM CDMA LTE NR
Company Contact:
- Posted By: UIY Inc.
- Phone: 86-0755-83748888
- Address: New address: No. 8, lane 1, Xintun East Zone, Longgang District, Shenzhen 518172, China, Shenzhen , Guangdong Province, China
- Email:
- Website: https://www.uiy.com/
Published date: July 6, 2023
- Business Description: UIY Inc.
was established in 2003 in Shenzhen, China,with the registered capital of 200 million yuan (about 32 million dollars),as a RF Microwave Componets Manufacturer and Communication Equipment RF Module Supplier.
We specialized in:
RF Isolator / Circulator
Coaxial Termination / Attenuator
Waveguide to Coaxial Adapter
Filter / Duplexer / Triplexer
Power Divider / Splitter
Hybrid Combiner / Directional Coupler
Tx & Rx Multicoupler
Our products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system.
We are committed to providing our customers with high-quality products for a long time.
Welcome partners from all over the world to cooperate with UIY, to feel the entrepreneurship strength in UIY.
Wish to create a beautiful tomorrow with you together!
Contact name: Ms kelly hu
Mob: +8613902992351
