Dcem Multi Channel Dc Meter Electric Digital Power - China

price: 58.00 Dollar US$

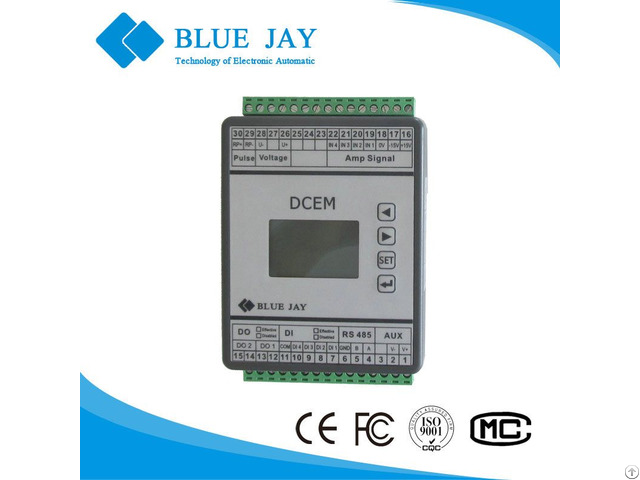

Dcem Multi Channel Dc Meter Electric Digital Power

Products Photos Catalog Dcem Multi Channel Photos Catalog

DCEM are special design for DC circuit metering, muti-channels signal design can much reduced the hardware cost of project.

One meter provide different four channel amp reading and energy consumption value record.

Same 35mm din rail mounting shell can work with Blue Jay MCM series meter for combine energy metering project in AC & DC circuit.

Optional analog, digital, relay and alarm output is available via field-swappable plug-in communications modules.

Also provide on-board RS485 serial communication port (MODBUS RTU) to send data to the external systems.

Main features ·DC power / energy sub-meter provides Voltage, Current, Power and Energy measurements

·Monitor and control power switches

·Bi-directional for renewable systems (NET metering)

·Interfaces with shunt or external Hall Effect current sensors

·Up to 1000Vdc Voltage input

·Up to 4 channels energy metering

·Record last 30days energy data for all channels

·RS-485 connectivity - Modbus RTU

·Optional alarming and analog output

·Optional 4 channels digital inputs / 2 channels digital outputs


Company Contact:


  • Phone: 18084019785

  • Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chonging , China

  • Email: Email


Published date: August 6, 2018

  • Business Description: ·Class 0.5 basic parameter and class 1 for active energy

    ·6 channels three phase or 18 channel single phase metering

    ·Current measuring .

    /5 or .

    /1 A (optional 333mV)

    ·Standard 35mm - 8 module DIN rail mounting

    ·Provide RS-485 MODBUS-RTU Communications

    ·Optional 6DI / 2DO for signal detect and remote control

    ·Optional external connection LCD screen, 96*96mm panel mount

    ·Optional TOU record for each monitor channel

    ·Accept customization design
