Decoder Dmx Spi 200 - China

Brief introduction

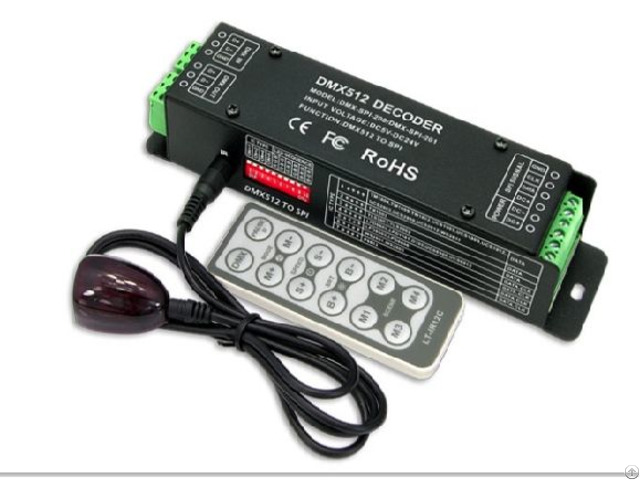

DMX-SPI-201 is DMX-SPI signal decoder, which convert the DMX512 digital signal into SPI(TTL) digital signal.

It can work on the DMX console to control the LED lights with compatible driving ICs.

DMX console can control every channel of the LED lights, realizing 0-100% dimming and various changing effect.

DMX-SPI-200 can switch 7 kinds of IC type, support more different lamps types of IC driver.

Performance Features

● Can switch 7 kinds of IC type, support more different lamps types of IC driver.

● Compatible with IC type list, be clear at a glance.

● According to the different LED lamps can switch freely RGB line sequence.

● Can be used as SPI console controller, with 35 kinds change effect.

Product parameter

Input signal DMX512

Input power DC5V~DC24V

Decoder channels 512 DMX CH/unit

Gray scale level 256 levels/CH (8bit/CH)

Compatible IC TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1803, TLS3001, TLS3002, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803,, WS2811, WS2812B, P9813

Dimming range 0~100%

Working Temperature -30℃~65℃

Product Dimensions L175×W42×H33mm

Package Dimensions L178×W46×H58mm

Weight(G.

W) 310g
