Decoder Dmx Spi 203 - China

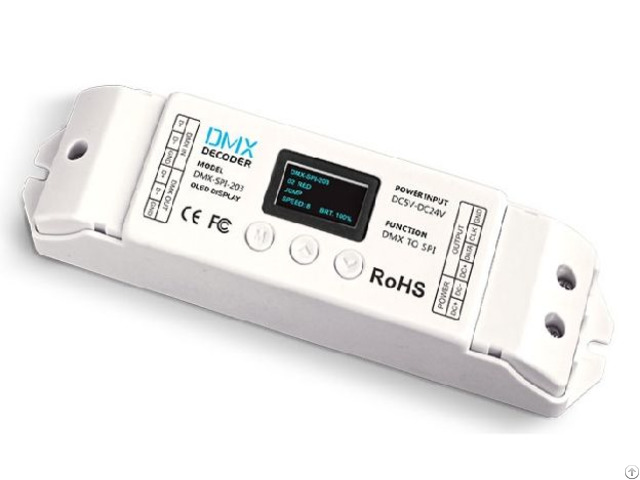

DMX-SPI-203 Receiving controller

Input power: 5~24VDC

Input signal: DMX512

Output signal: SPI(TTL)

Function Mode: 540 modes

Control Quantity: 1024 pixels

Virtual pixel : 32768 pixels

Working Temperature -30℃～65℃

Dimensions L175×W44×H30(mm)

Weight(G.

W) 130g

DMX-SPI-203 is DMX-SPI signal decoder, which convert the DMX512 digital signal into SPI(TTL) digital signal.

It can work on the DMX console to control the LED lights with compatible driving ICs.

DMX console can control every channel of the LED lights, realizing 0-100% dimming and various changing effect.
