Dgs Co 968 034 Digital Carbon Monoxide Gas Sensor Module - China

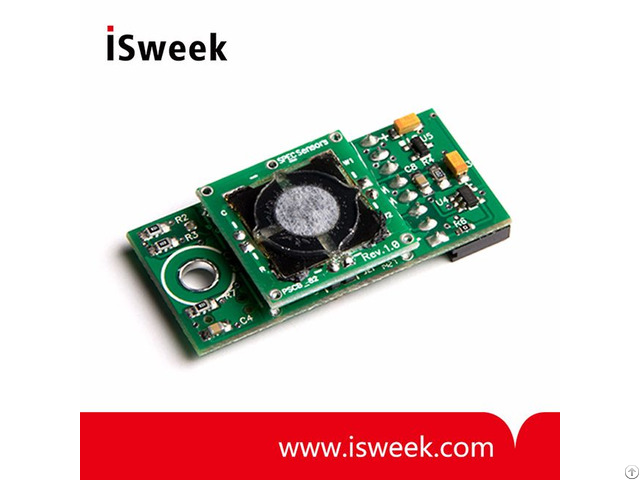

DGS-CO 968-034 Digital CO Sensor Module DESCRIPTION

Easily add Carbon Monoxide sensing to your IoT application with our digital CO sensor module that provides a calibrated and temperature compensated output.

/

0 to 1000 ppm Carbon Monoxide sensor with digital output

/

DGS-CO 968-034 Digital CO Sensor Module BENEFITS

• Low Power – 1 mW @ 1 minute sampling

• Fast Response – 15 seconds typical

• Calibrated & Temp.

Compensated Output

• Simple Digital UART Interface

• Integrated T & RH Sensors

• Robust 10-year Estimated Lifetime

• ROHS Compliant

• Small form Factor

• UART to USB adapter provided

• Lightweight (< 2 oz.

)

/

DGS-CO 968-034 Digital CO Sensor Module APPLICATIONS

• Life Safety Levels

• Air Quality Levels

/

DGS-CO 968-034 Digital CO Sensor Module MEASUREMENT PERFORMANCE CHARACTERISTICS

Based on Standard Conditions 25 ºC, 50% RH and 1 atm

Measurement Range: 0 to 1000 ppm

Resolution: 0.1 ppm

Zero Accuracy: ± 1 ppm

Measurement Accuracy: 15% of reading

Measurement Repeatability: < ± 3% of reading or 2 ppm, whichever is greater

T90 Response Time (100 ppm step): < 30 seconds (15 seconds typical)

Power Consumption: 1 mW for 1 minute triggered samples 12 mW for continuous sampling 5, 10 30, 60 second intervals

Expected Operating Life: > 5 years (10 years @ 25± 10C; 60 ± 30% RH)

Operating Temperature Range: -20 to 40 °C (-30 to 55 °C intermittent)

Operating Humidity Range: 15 to 95% (0 to 100% non-condensing intermittent)

Mechanical Dimensions: 1.75 x 0.82 x 0.35 in.

(44.5 x 20.8 x 8.9 mm)

Weight: < 2 Ounces
