Dgs H2s 968 036 Digital Hydrogen Sulfide Gas Sensor Module - China

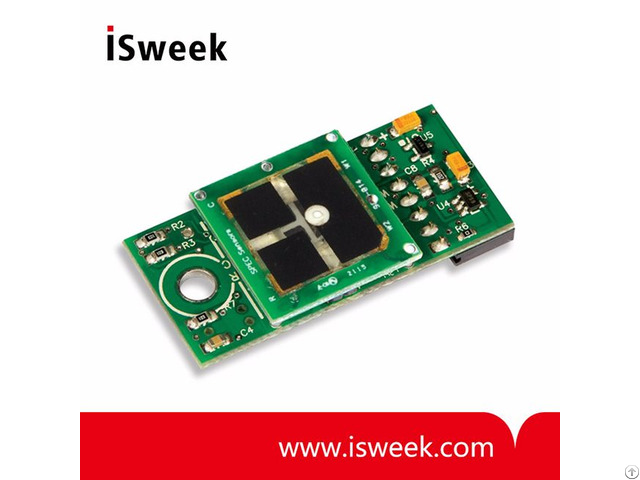

DGS-H2S 968-036 Digital H2S Sensor Module DESCRIPTION

Easily add H2S sensing to your IoT application with our hydrogen sulfide digital gas sensor module that provides a calibrated and temperature compensated output.

/

0 to 10 ppm H2S gas sensor with digital output.

/

DGS-H2S 968-036 Digital H2S Sensor Module BENEFITS

• Low Power – 1 mW @ 1 minute sampling

• Calibrated & Temp.

Compensated Output

• Fast Response < 30 seconds

• Simple Digital UART Interface

• Integrated T & RH Sensors

• Robust 10-year Estimated Lifetime

• ROHS Compliant

• Small form Factor

• UART to USB adapter provided

• Lightweight (< 2 oz.

)

/

DGS-H2S 968-036 Digital H2S Sensor Module APPLICATIONS

• Bad Breath/Halitosis Sensing

• Air Quality Monitoring

• Industrial Safety Sensing

/

DGS-H2S 968-036 Digital H2S Sensor Module MEASUREMENT PERFORMANCE CHARACTERISTICS

Based on Standard Conditions 25 ºC, 50% RH and 1 atm

Measurement Range: 0 to 10 ppm

Resolution: 10 ppb

Measurement Accuracy: 15% of reading

Measurement Repeatability: < ± 3% of reading

T90 Response Time (100 ppm step): < 30 seconds

Power Consumption: 1 mW for 1 minute triggered samples 12 mW for continuous sampling 5, 10 30, 60 second intervals

Expected Operating Life: > 5 years (10 years @ 25± 10C; 60 ± 30% RH)

Operating Temperature Range: -20 to 40 °C (-30 to 55 °C intermittent)

Operating Humidity Range: 15 to 95% (0 to 100% non-condensing intermittent)

Mechanical Dimensions: 1.75 x 0.82 x 0.35 in.

(44.5 x 20.8 x 8.9 mm)

Weight: < 2 Ounces
