Digital Output Single Axis Tilt Sensor - China

ER-TS-4156DI Features:

1 - Single axis tilt monitoring;

2 - Wide voltage input DC 9~36V;

3 - Full range accuracy 0.1°, resolution 0.01°.

Introduction

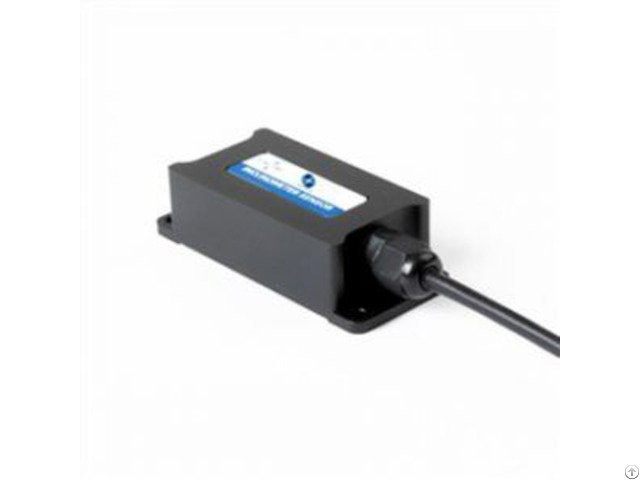

ER-TS-4156DI digital single axis tilt meter is a new generation of digital small-volume MEMS tilt meter, built-in dual-channel earth gravity tilt unit, which measures static gravity acceleration and converts it into tilt change.

Thus the sensor output can be measured with respect to the horizontal plane tilt and pitch angle.

The output mode has RS232, RS485 or TTL, MODBUS level interface to choose from.

Due to the built-in MCU control system, the output linearity of the sensor has been corrected twice to make up for the loss of accuracy caused by the lack of analog correction.

The product adopts non-contact measurement of the original quantity, which can output the current attitude and inclination in real time.

The operation is simple, and there is no need to retrieve the two sides of the change.

It can resist external electromagnetic interference and adapt to harsh industrial environment for long-term work, so it is an ideal choice for industrial automation control and platform attitude measurement.

Features

Single axis tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Industrial design

Wide voltage input DC 9~36V (5V can be customized)

Wide temperature working -40~+85℃

Measuring range: 0~±180° (optional)

High vibration resistance >3500g

Baud rate 2400~115200 adjustable

IP67 protection

Output: RS232/RS485/TTL/MODBUS (optional)

Small volume (90*40*27mm) (customizable) Applications

High voltage power line tower pole monitoring

Satellite solar antenna positioning

Aerial work vehicle

Mining machinery, oil logging equipment

Medical equipment

Tripod head levelling

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams
