Digital Partical Discharge Detector - China

Digital partical discharge detector

Features

Ø With anti-interference mode, which is unique in China, so that to attenuate space interference from site test.

Ø Great anti-shock ability.

Ø Digital PD detector with great accuracy (class 5, the highest accuracy in China)

Ø Data collection card with high-speed and great capacity, can collect PD data continuously, has good data reproducibility and high

accuracy.

Test function, Ø Analyze function (multi-parameter analysis, 2 dimensional atlas analysis and 3 dimensional atlas analysis );

Ø Data save function;

Ø Report generation & printing function.

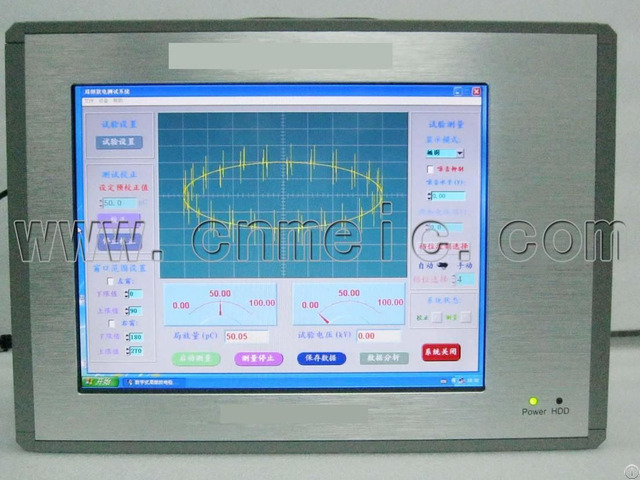

Ø This device displays PD waveform (ellipse, sine wave and straight line ), PD value and testing voltage simultaneously.

Ø Auto gain adjustment during calibration and testing process, which is easy to operate without manual operation

Ø Apply to power supply of 50Hz, 150Hz and up to 400hHz.

And it can trace frequency phase of testing power supply.

Ø Open door and time window can be set arbitrarily, down to 1degree.

Ø Small size and low weight.

Main technical parameters

² Electric capacity range of tested object： 6pf～250μf

² Detection sensitivity: <0.02pc at capacity 50pf.

² Amplifier: 3db low frequency fl 10, 20, 30, 50, 80kHz optional, l 3db high frequency fh 100, 200, 300, 400, 500kHz optional.

l Gain adjustment range>120db, gain difference between gear 20±1db.

l Positive & negative pulse response asymmetry<1db

² Time window: window width 1о～360о, and window position can be revolved freely.

² Testing voltmeter: 0-- 1000kV, error＜3%F.

S when digital meter displays.

² Collection channel: 1 channel.

² input impedance: 1MΩ

² Highest sampling rate of collection card: 20MHZ

² AD resolution 12BIT.

DC accuracy 0.2%.

² Sampling length per channel: 8M

² Trigger mode: manual, external trigger, internal trigger

² Band width of collection card: 3MHZ(-3DB)

² Weight: about 15kg
