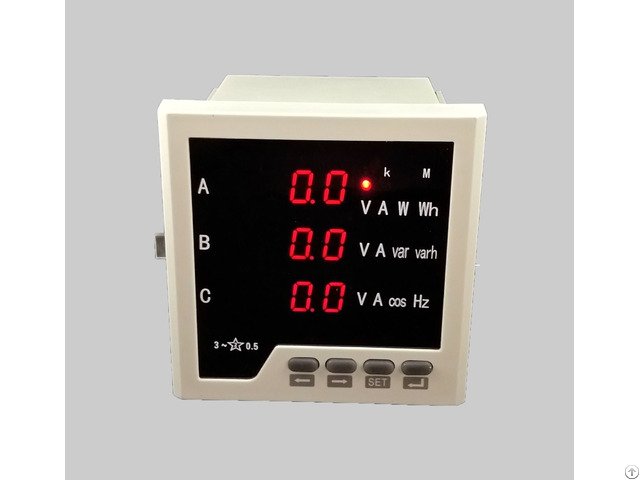

Digital Power Meter 3p4w Rs485 Di Do Analog Output Ce - China

*Power supply: AC220V or AC/DC 80V~260V *3-phase 3-wire, 3-phase 4-wire *Voltage rated value: AC100V/220V/380V/500V accuracy: 0.5 *Current rated value: AC1A/AC5A accuracy: 0.5 *Frequency: 40-60Hz Function module: *Standard configuration: 1 way RS-485 communication, Modbus-RTU protocol Baud rate: 9600bps *Power pulse output: 1 way active power, 1 way reactive power pulse output, constant: 3200imp Additional functions: *DO: Supports 4-way relay output, capacity: AC250V/5A, DC30V/5A *DI: Supports 4 way dry point input *Supports 4 way analog output: 4~20mA/0~20mA or 0~5/0~10V

Company Contact:

• Posted By: Anyang Ouhan Trade Co.,ltd

• Phone: +8615993815606

• Address: Zaoxiang avenue, Neihuang county, Anyang city, Henan province, China, Anyang City, Henan , China

• Email:

• Business Description: Anyang Ouhan Trade Co., ltd, which is located in the center of China, Henan Province, is specializing in export many kinds of power meters, energy meters, analog panel meters, such as led multi-function digital meter, lcd multi-function programmable electric energy meter, three phase ampere meter and voltage meter, single phase digital meter and shunt resistor etc.

  When selecting the type of LED digital panel meter, the following parameters are usually required:

  1 - External dimensions of the CE approved panel mount programmable switchboard LCD digital power meter, to consider the overall coordination of the cabinet, the instrument size is too large may not fit, too small may not see clearly display Numbers;In addition, the instrument with large size usually has strong functional expansion, while the instrument with small size may have poor functional expansion.

  At present, the international standard size of digital display surface plate mainly has the following types: 48 24mm, 48 48mm, 48 96mm, 72 72mm, 96 96mm, 96 48mm, 160 80mm, 80 160mm.

  The most commonly used instruments are 160 x 80mm, 80 x 160mm, 96 x 96mm and 96 x 48mm.
