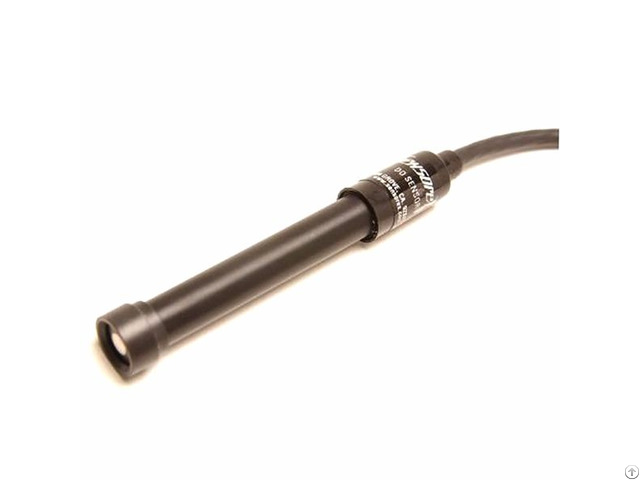

DO1200 and DO1200TC Dissolved Oxygen Sensors

/

Item No: DO1200/H, DO1200/T, DO1200TC/H, DO1200TC/T, 971598, 971598TC

/

Reliable galvanic sensing technology

Compact 12mm design

For portable, laboratory or on-line use

Optional integral ATC element

Easy to use pre-membraned replacement caps

/

The DO1200 and DO1200TC feature dependable galvanic technology.

No warm up period is required.

Sensors are supplied with fast responding HDPE membrane caps for portable or lab use.

Optional PTFE membrane caps are available for on-line or heavy UV exposure applications.

Fill solution is replaceable when required.

/

The DO1200 is supplied without internal temperature compensation.

The DO1200TC can be supplied with a variety of user defined ATC elements.

Standard cable length is 2.5 feet with a tinned lead termination.

Longer cable lengths and connectors are available for an additional charge.

For on-line use, our FC75P 3/4 inch in-line fitting may be ordered to provide for mounting into 3/4 inch FNPT threaded tees.

/

Specifications

Range: 0-20 mg/L

Body Material: Epoxy and Noryl

Max Temperature: 50 Degrees C

Saturation Output: HDPE = 47mV +/- 9mV, ; PTFE = 33mV+/-9mV

Pressure: 0-100 psig (7.5 Bar)

Calibration: Single point in air

Response Time: After Equilibration, HDPE 1 minute for 2mV, PTFE 2 minutes for 2mV
