Dp Series Electrical Ct 5a Styles - China

Description

Features

Accessories application

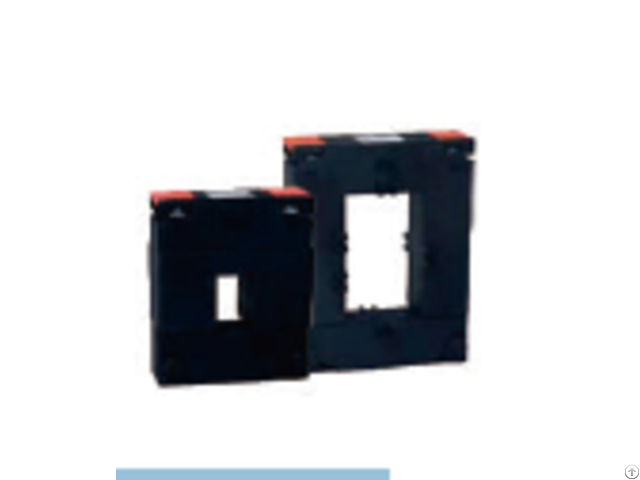

DP series

Electrical CT

.

/5A styles

The DP series current transformer has been

specially designed to facilitate their

installation in new or already existing net

works.

Connection of conventional CTs

usually requires the interruption of the

primary side circuit to pass cables or bus-bars

through the transformer core or to connect

such cables to the primary terminals.

DP

series CT core can easily opened and

installed and connected without any supply

interruption.

Thus saving time and the

installation costs.

Optional Accessories Optional Accessories

Description

Features

SCT series

Electrical CT

.

/1A styles

SCT series split-core current senses

AC current from 100 to 800 Amps

passing through the center conductor.

Split core design permits non-contact

current measurements through

magnetic field induction without

requiring that the primary wire be

taken offline and disconnected for CT

installation.

This method permits a

safer, easy and portable current

measurement.

·Secondary side current less than1A

·Spite core design for wiring cable

·with a 1 meter distance copper wire for

easy installation

Company Contact:

• Posted By: Chongqing Blue Jay Technology Co., Ltd

• Phone: (+0086) 023-67628702

• Address: JingYu Avenue No.153, Building 3A-13-25, Jiangbei District , 400020, Chongqing, P.R.China, chongqing , chongqing , China

• Email:

• Website: https://cqbluejay.com

• Business Description: Application:

  The MCM1000 Series provides a compact and robust metering solution, enable reliable monitoring of building electrical loads with a low installation cost-per-point by combining sub-metering.

  The unit performs real-time metering, measures energy consumption, multitariff time-of-use (TOU) and monitors power quality for max 18 channel circuits for single phase or 6 channel for three phase circuits.

  Advanced communications options including Modbus via RS485, I/O communications provide for extensive reliable data exchange.

  Multiple

  units can be connected together to meter unlimited number of circuits.

  The versatility of MCM1000 meters are ideal for multi-tenant or departmental metering applications within office towers, condominiums, apartment buildings, shopping centers and other multi-user environments.

  Features:

  ·Class 0.5 basic parameter and class 1 for active energy

  ·6 channels three phase or 18 channel single phase metering

  ·Current measuring .

  /5 or .

  /1 A (optional 333mV)

  ·Standard 35mm - 8 module DIN rail mounting

  ·Provide RS-485 MODBUS-RTU Communications

  ·Optional 6DI / 2DO for signal detect and remote control

  ·Optional external connection LCD screen, 96*96mm panel mount

  ·Optional TOU record for each monitor channel

  ·Accept customization design
