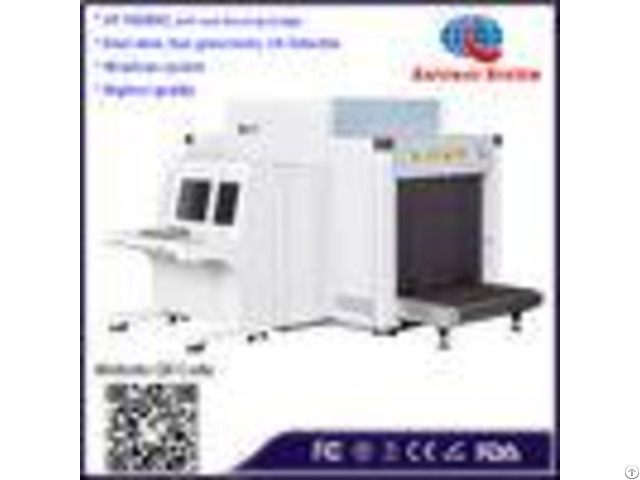

Dual Energy High Conveyor Speed X Ray Airport Cargo Scanner With Triple Generator - China

Dual Energy High Conveyor Speed X Ray Airport Cargo Scanner with Triple Generator AT10080D belongs to the X-Ray CargoScanner product family, which are designed for the security inspection of the big baggage, luggage and cargo etc.

Dual view with two x-ray generators.

Advanced model of AT10080 - Its widely used in the airport, logistics, subways, bus station, hotels etc.

Product highlights * Two generator, dual view to give a super clear image * Multilingual operation * Automatic built in test and self diagnosis * Secure access Key * Uninterruptable power supply (UPS) * Threat alert and material classification * Auto archiving * Network-Ready * Energy saving design * One key turn off * Drugs and explosives inspection * Indication of the date and time * baggage counter Physical Specifications - - - - | Unit weight (kgs) | 850 | Unit size (mm) | 3146(L)*1295(W)*1648(H) | after packed in wooden pallet - | | Gross weight (kgs) | 895 | Packing size | #1: 226*143*194cm | | #2: 113*91*142cm | | General Specifications | | Tunnel size(mm) | 1000(L)*800(W) | Conveyor Speed(m/s) | 0.22 | Conveyor height(mm) | 296 | Conveyor Max Load(kgs) | 200 | X ray dose per each inspection | 1.5 Gy | X ray leakage | <0.25 Gy / h | Penetration | 43mm steel | Wire Resolution | dia 0.0787mm copper wire (AWG40) | Penetration Resolution | dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm | Spatial resolution: | dia1.0mm, Vertical: dia1.0mm | Power Consumption | max.

1KW | Noise | < 58 dB | Film Safety | Guarantee ASA/ISO1600 Film | | | X-ray Generator (single) | | Anode Voltage | Spellman 160 KV * 2 | Anode power | 0.4-1.2mA (adjustable) | Generate angle | 80 degree upward | Generate direct | from bottom to top | Cooling / Duty Cycle | Oil Cooling /100% | Brand | Spellman | | | Image System | | X-ray Sensor | L-Shaped Photodiode Array (multi-energetic), 12bit Deep | Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 | Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

| Image Recall | All preceding images recallable, retrieval | Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature | High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands | Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability | Image Archive | Up to 100, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats | Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.

| Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .

| Images process | 24bit real time processing, 4colors analysis, Images displayed marked date and ID NO, Count the number of bags | | | Operating Environment | | Operation temperature/Humidity | 0C-45C / 5%-95%(non-condensing) | Storage Temperature/Humidity | -40Cto 70C / 5%-95%(non-condensing) | Operation Power | 220VAC(10%) 503Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC) | UPS | 15mins, 30mins, 60mins etc, optional | | | Computer and other | | Monitor | High Resolution Color, LCD Accord, 17inch | Hard Disk | SEAGATE 500G 3.5" | CPU | G1610 2.6G | Storage | 2GB 1600MHz DDR3 Innodisk | Main board | H61 SYM76993VGGA | | | - - - -
