Dual Energy Low Price X Ray Security Scanner For Shopping Malls Hotels Subways Church Etc - China

Dual energy low price X-Ray Security Scanner for shopping malls, hotels, subways, church etc.

Product highlights: * Multilingual operation * Automatic built in test and self diagnosis * Secure access Key * Threat alert and material classification * Auto archiving * Network-Ready * Energy saving design * One key turn off * Drugs and explosives inspection * Indication of the date and time * baggage counter TH5030 Dual Energy X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination.

TH5030 use same operating system as AT5030A, but its dual energy give high definition scanned images, showing real organic and inorganic objects.

It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

Model Number TH5030 - - - - Physical Specifications | | Unit weight (kgs) | 303 | Unit size (mm) | 1660(L)*746(W)*1165(H) | after packed in wooden pallet - | | Gross weight (kgs) | 380 | Packing size | 180*88*138cm | | General Specifications | | Tunnel size(mm) | 503(L)*303(W) | Conveyor Speed(m/s) | 0.2 | Conveyor height(mm) | 663 | Conveyor Max Load(kgs) | 60 | X ray dose per each inspection | Typical 3.0 Gy/h, guarantee 3.5 Gy/h | X ray leakage | Typical1.0 Gy/h, guarantee 1.5 Gy/h | Penetration | Typical 32mm, guarantee 30mm | Wire Resolution | Typical AWG40, guarantee AWG38 | Penetration Resolution | Typical AWG32, guarantee AWG30 | Spatial resolution: | Typical dia1.0mm, Vertical: dia1.0mm; Guarantee dia1.3mm, Vertical: dia1.3mm; | Power Consumption | 0.5KVA | Noise | < 60dB | Film Safety | Guarantee ASA/ISO1600 Film | | | X-ray Generator | | Anode Voltage | 140 KV | Anode power | 0.5mA | Generate angle | 80 degree upward | Generate direct | from bottom to top | Cooling / Duty Cycle | Oil Cooling /100% | Brand | made by ourself | | | Image System | | X-ray Sensor | L-Shaped Photodiode Array (multi-energetic), 12bit Deep | Image Display | High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 | Image Enhancement | 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

| Image Recall | All preceding images recallable, retrieval | Explosives & Narcotics Detection | Explosives & narcotics alarm and highlight according to atomic number signature | High Density Region Alarm | Impenetrable region alarm and highlight, for possible concealing of threats and contrabands | Threat Image Projection | Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability | Image Archive | Up to 500, 000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats | Miscellaneous Functions | Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.

| Network Applications | Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .

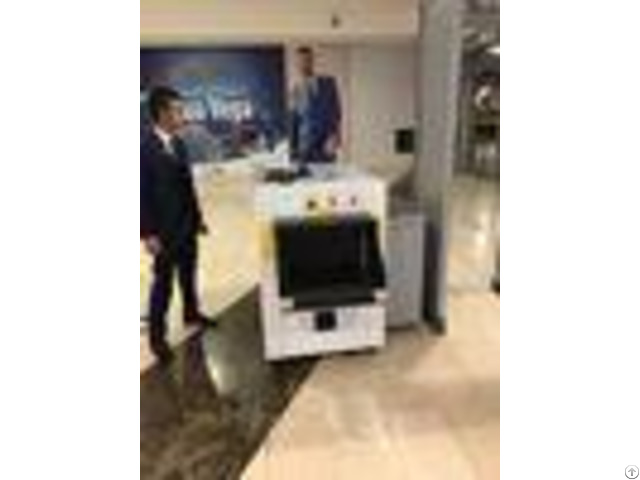

| Images process | 24bit real time processing, 4colors analysis, Images displayed marked date and ID NO, Count the number of bags | | | Operating Environment | | Operation temperature/Humidity | 0-45 / 5%-95%(non-condensing) | Storage Temperature/Humidity | -40to 70 / 5%-95%(non-condensing) | Operation Power | 220VAC(10%) 503Hz (Optional: 100VAC, 110VAC, 120VAC, 200VAC) | UPS | 15mins, 30mins, 60mins etc, optional | | | Computer and other | | Monitor | High Resolution Color, LCD Accord, 17inch | Hard Disk | SEAGATE 500G 3.5 | CPU | G1610 2.6G | Storage | 2GB 1600MHz DDR3 Innodisk | Main board | H61 SYM76993VGGA | - - - - Below are the installation photos for Safeway X-Ray Baggage Scanners in a Convention Center
