Dual Lane SMT Reflow Oven
Nitrogen soldering process
dual rail conveyor
Weight Appx: 3060Kg
Dimension 6300*1680*1530mm

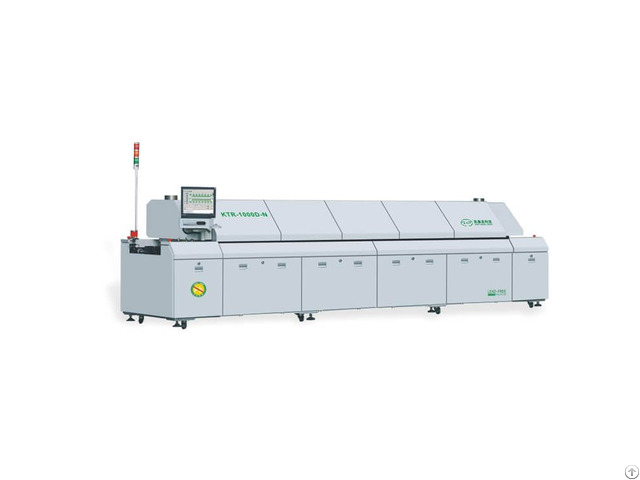

Product description: Dual Lane SMT Reflow Oven KTR-1000D-N Manufacturer, Nitrogen soldering process, dual rail conveyor, Weight Appx: 3060Kg, Dimension 6300*1680*1530mm
10 Zones Dual Lane Nitrogen SMT Reflow Oven KTR-1000D-N Specifications: Features: 1 - Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.
2 - The dual-rails conveyor is able to improve the production efficiency as well as power & cost.
3 - 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.
4 - New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.
5 - User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively.
So the lowest concentration of N2 and O2 can be reached to 150 PPM.
6 - When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.
7 - Double-track dual-speed, single machine cost, double production capacity, energy saving up to 65%.
8 - Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.
9 - The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.
Model KTR-1000D Control Industrial computer Heating zones quan.
Top 10, bottom 10 Cooling zones quan.
Top 3, bottom 3 Heating zone length 3892mm Current plate Thick copper plate Weight Appx: 3060Kg Dimension 6300*1680*1530mm Exhaust capacity 10㎡/min×2 Color Grey Nitrogen system With "-N" standard configuration including nitrogen sealed structure and pipeline, nitrogen flow meter, water chiller cooling system Full Nitrogen system: Oxygen analyzer added on the N Standard Nitrogen consumption Standard width machine (400mm Width): 300-1000ppmO2ppm, 10-20m3/ hr N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr Control system Electricity supply 3P 380V/220V 50/60HZ Temp.
control range Room temp.
~300℃ Total power 83KW Temp.
control accuracy ±1℃(static state) Start power 38KW Temp.
control method PID +SSR drive Consumption power 11KW PCB temperature deviation ±1.5℃ Speed control 3 sections with 3 inverters Data save All profiles can be saved Warm up time Apprx.
30minute Abnormal alarm High, low temp.
alarm Conveying system Rail structure 2 Sectional structure Rail fixed method Front fix Chain Stuck-free type Conveying height 900±20mm PCB Max.
width 50-400mm Conveying method Chain+ belt mesh Component height Top/bottom 30mm Conveying speed 300-2000mm Conveying direction Left to right Lubrication Automatic Cooling system Cooling method Water Chiller Heating features Heating zones Top 10, bottom 10(3892mm)can meet the need of the peak lead-free technique.
Cooling zones After cool down by air, PCB temp.
is ≤45℃ at the exit.
Warm up time From the normal temp.
to set temp, approximate 30 minutes.
Warm up sequence Warm up from two side, save the power and time Profile transfer time <15min Heating zone temp.
control accuracy ±1℃ PCB temp.
deviation ±1.5℃ Empty→ full load heat balance respond time ≤20 s
