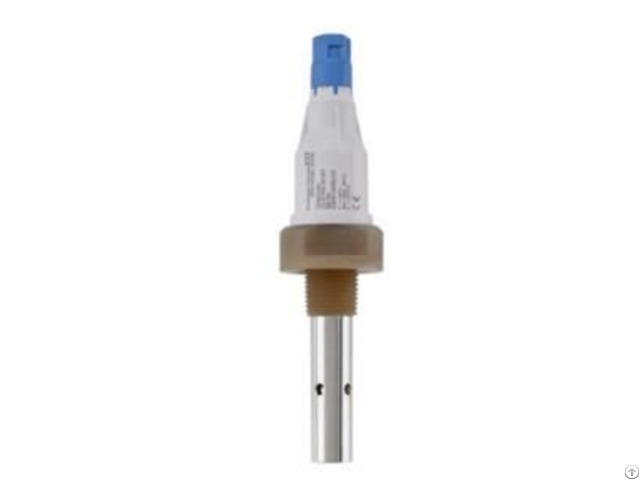

E H Conductivity Sensor Condumax Cls15da1mi - Germany

Measuring Principle Conductive

Application Water, power plant, pharmaceuticals, process

Characteristic 2-electrode conductivity cell for pure and ultrapure water

Measurement range k=0, 01: 0-20 µS/cm

k=0, 1: 0-200 µS/cm

Measuring principle Conductive conductivity cell with polished stainless steel electrodes

Design 2-electrode conductivity cell with coaxially arranged electrodes, electropolished

Material Electrode: 1.4435

Electrode shaft: PES

Dimension Electrode diameter: 16 mm

(0.62 inch)

Electrode length: appr.

55 mm

(2.14 inch)

Process temperature max.

100°C (140°C / 30 min.

)

(max.

212°F (302°F/30 min.

)

Process pressure max.

12 bar at 20°C

(174 psi at 68°F)

temperature sensor NTC

Connection process: 1/2"NPT, 3/4" NPT, clamp 11/2"

Cable: Memosens connector

Ingres protection IP68

Additional Certifications Calibration certification of the cell constante, material certification 3.1
