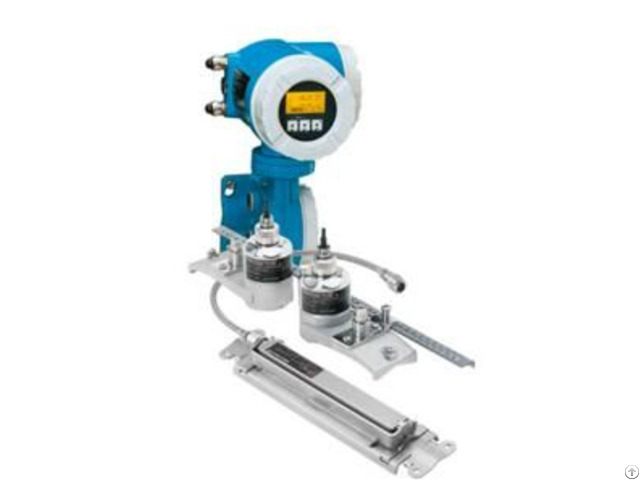

E H Proline Prosonic Flow 93p Ultrasonic Flowmeter 93pa1 Ab3f20kgbbaa - Germany

Measuring Principle Ultrasonic flow

Product headline The flowmeter for hazardous area installations with a wide range of analog and digital outputs.

Automatic frequency scan for maximum measuring performance.

Ideal clamp-on device for applications with chemicals, solvents, liquid hydrocarbons, acids and alkalis.

Sensor features Increased safety for chemical and petrochemical industry – international hazardous area approvals.

No additional leakage paths – external measurement from outside the pipe.

Process transparency – diagnostic capability.

Medium temperature: –40 to 170 °C (–40 to 338 °F).

Wide nominal diameter range: DN 15 to 4000 (½ to 160").

Transmitter features Highest performance – extended functionality and diagnostics.

Flexible data transfer options – numerous communication types.

Automatic recovery of data for servicing.

Aluminium transmitter housing.

4‐line backlit display with touch control.

Nominal diameter range Single channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160")

Dual channel, 1 or 2 paths : DN15 to 4000 (1/2 to 160")

Wetted materials Clamp on system:

Sensor holder 1.4308/CF-8

Sensor housing 1.4301/304

Strapping bands 1.4301/304

Measured variables Volume flow channel 1&2, average volume flow, volume flow difference, sound velocity, flow velocity, totalizer

Max.

measured error Volume flow:

±3% o.r. for DN15

±2% o.r. for DN25 to DN200

±2% o.r. above DN200

Measuring range 0.3 to 10 m/s (1 to 33 ft/s)

Max.

process pressure N/A

Medium temperature range DN15 to 65

-40 to +100°C (-40 +212 °F)

-40 to +150°C (-40 +302 °F) option

DN50 to 4000

-40 to +80°C (-40 +276 °F)

-40 to +170°C (-40 +338 °F) option

Ambient temperature range -20 to +60 °C (-4 to +140 °F)

-40 to +60 °C (-40 to +140 °F) optional
