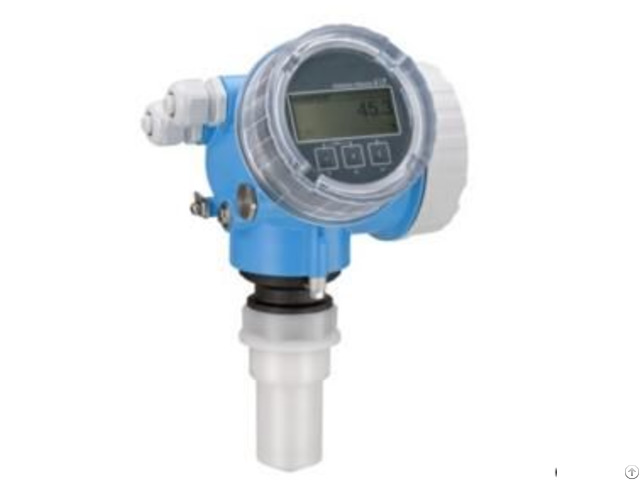

E H Radar Measurement Time Of Flight Micropilot Fmr50 C0t3 0 - Germany

Measuring Principle Level radar

Characteristic / Application For basic level measurement in liquids, pastes and slurries; non affected by changing media, temperature changes, gas blankets or vapor;

Encapsulated PVDF or PP clad horn antenna

Specialities SIL 2 according to IEC 61508, Safety and reliability with Multi-Echo Tracking, HistoROM

Supply / Communication 2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)

4-wire (HART)

Frequency K-band (~26 GHz)

Accuracy +/- 2 mm (0.08 in)

Ambient temperature -40.

+80 °C

(-40.

+176 °F)

Process temperature -40.

+130 °C

(-40.

+266 °F)

Process pressure absolute / max.

overpressure limit Vacuum.

3 bar

(Vacuum.

43.5 psi)

Main wetted parts PVDF, PTFE, Viton, PP, PBT

Process connection Thread:

G1 1/2, MNPT1 1/2

Flange:

UNI DN80 - DN150 (3".

6")

Max.

measurement distance Standard: 30 m (98 ft)

With enhanced dynamics: 40 m (131 ft)

Communication 4.20 mA HART

PROFIBUS PA

FOUNDATION Fieldbus

Certificates / Approvals ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, KC

Safety approvals Overfill prevention WHG

SIL
