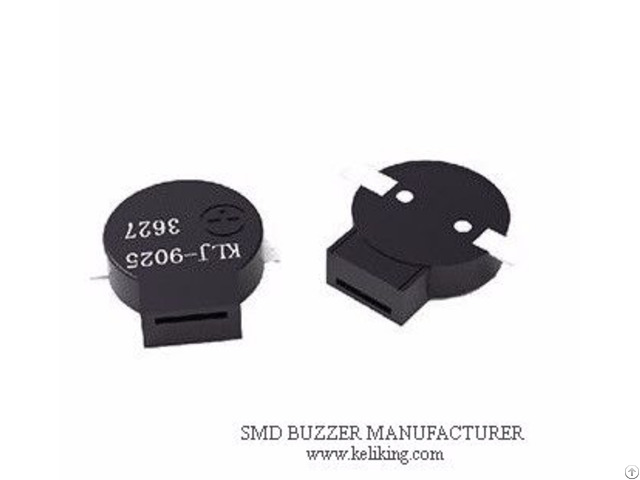

Easily Assemble Passive Smd Magnetic Surface Mounted Buzzer Klj 9025 3627 - China

price: 0.33 Dollar US$

Operating Voltage(Vp-p) 2.5-4.5

Rated Voltage(Vp-p) 3.6

Current Consumption(mA/max) 90 at Rated Voltage

Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage

Coil Resistance(Ω) 16±3

Operating Temperature(℃) -20~ +85

Storage Temperature(℃) -30 ~ +85

Environment Compulsory Standard ROHS

PS: Vp-p=1/2duty, square wave Application Range Audible distance at rated vol.

6m

Application Smart electronic devices, hand-held electronic devices, smart home controller, POS machine, burglar alarm, mini artificial intelligence devices and more.


Company Contact:


  • Phone: +86 13861009344

  • Address: No. 1-1, Dongtang Road, Sanhekou, Zhenglu, Changzhou, Changzhou , Jiangsu , China

  • Email: Email


Published date: August 7, 2017

  • Business Description: Changzhou Keliking Electronics Co., Ltd. is the full set solution supplier for micro SMT buzzer.

    Included electromagnetic buzzer and piezo buzzer.
