Eds Series Displacement Sensors - China
price: check with company for price

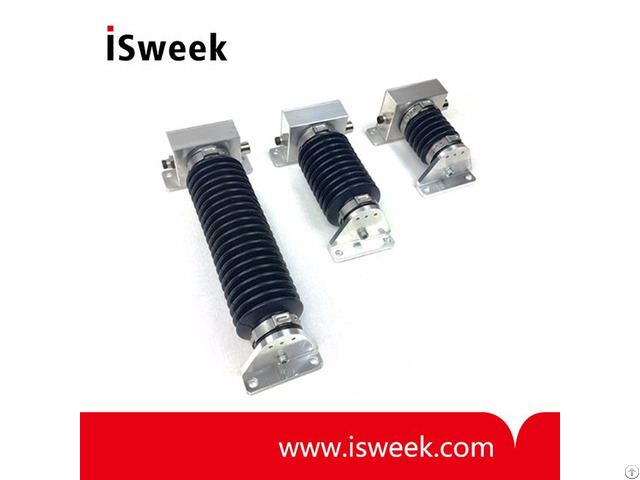

EDS Series Displacement Sensors Description
Our displacement sensor may either be used as a standalone unit or as a part of a system together with other daisy chained sensors.
In stand- alone mode the sensor requires 24VDC supply and outputs an analogue current in the range of 4-20mA.
The output signal is linearly proportional to the displacement i.e. 4mA corresponds to 0mm and 20mA represents the maximum displacement of the sensor.
/
The flexible nature of the sensors enables off-axis displacements measurements in all three directions.
/
EDS Series Displacement Sensors Specifications
• Measurement range: EDS20: 20mm EDS50: 50mm EDS100: 100mm EDS200: 200mm
• Power supply: 24V DC
• Analogue output: 4 - 20mA
• Absolute accuracy: 0.1% Full Scale
• Power consumption: < 100mA
• Update rate: Up to 10k samples/second
• Operating temperature: -20°C to 80°C
• Operating humidity: 5%RH to 80%RH
• Ingress protection: IP63
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: May 16, 2018
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
