Eeh110 Digital Humidity And Temperature Sensor With 5 V Supply Voltage - China

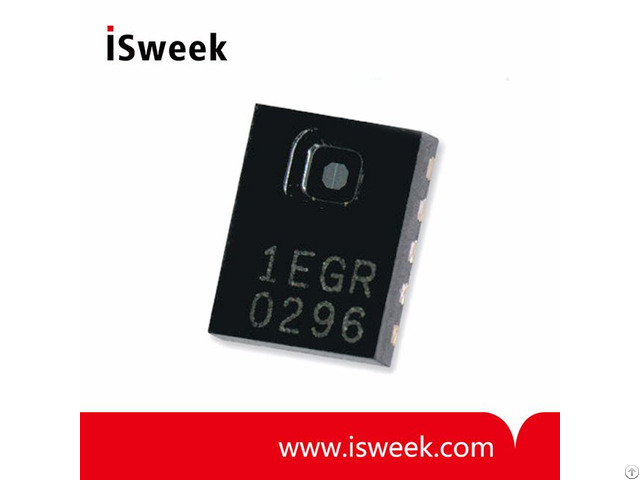

EEH110 Digital Humidity and Temperature Sensor Description

Well proven humidity sensor element, state-of-the-art ASIC technology and highly accurate humidity and temperature adjustment represent the basis for outstanding performance of the digital humidity and temperature sensor EEH110 - The proprietary E+E coating protects the sensor against dirt and corrosion, which leads to excellent long-term stability even in polluted environment.

The measured values are available on the digital interfaces I2C, PWM and PDM as well as on an analogue voltage output.

/

EEH110 Digital Humidity and Temperature Sensor Features

• Multipoint humidity / temperature factory calibration

• Excellent long term stability due to the E+E proprietary coating

• Long standing proven sensor technology

• DFN enclosure 3.6 x 2.8 x 0.75 mm

• 3 digital interfaces: I2C, PWM and PDM + analogue humidity voltage output

• Supply voltage 5 V

/

EEH110 Digital Humidity and Temperature Sensor Performance

EEH110 is a relative humidity sensor and temperature sensor with band gap circuit, it contains oscillator, A/D convertor, regulator, D/A convertor, NVM, digital processing unit and calibration circuit.

/

• Operating Humidity Range: 0~100% RH • Humidity Repeatability (12 bit): ±0.1% RH

• Humidity Resolution: 0.04%RH (12 bit); 0.7%RH (8 bit)

• Operating Temperature Range: -40~125°C

• Temperature Repeatability (12 bit): ±0.1°C

• Temperature Resolution: 0.01°C (12 bit); 0.04°C (8 bit)

• Supply Voltage: 4.5 - 5.25V

• Communication: Digital 2-wire interface, I2C, SEL[1: 0]
