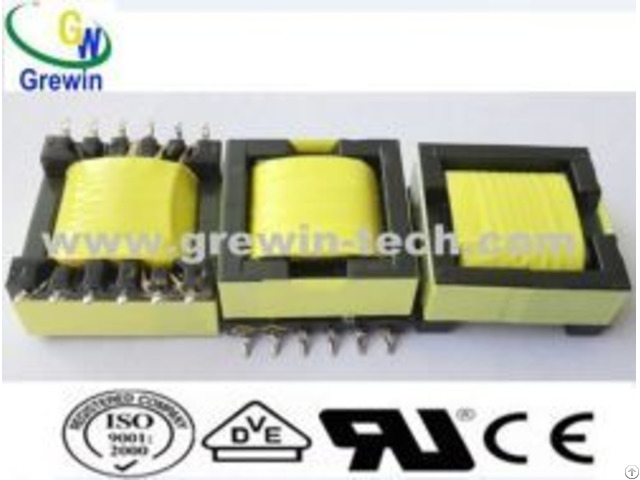

Efd Size High Frequnency Transformer For Visual Equipment - China

We have passed ISO9001, CE, SGS approval and IEC report EFD type Transformer Parameters Model Pin Dimension A B C D E EFD-12 8 6 17 20 3.0 13.5 EFD-15 10 7.3 18.2 21.35 2.5 15 EFD-15 10 7.5 19.3 22.6 3.0 16.7 EFD-20 10 9.4 25.3 27.7 3.75 21.7 EFD-20 12 9.7 24 26.8 3 20 EFD-25 10 13.4 29.7 35.4 5 25 EFD-25 10 12.6 29.7 31.5 5 25 EFD-30 12 12.6 31.6 35.5 5 30 Efd Size High Frequnency Transformer for Visual Equipment 1).

Features: Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm

structure, can fine-tune the inductance, etc., are widely used in fax

machines, PBX.

2).

Applicable frequency range: 20 to 100kHz :

Operating frequency: higher than 200kHz

High magnetic flux and low loss magnetic materials

With low leakage inductance and high efficiency .

3).

Applications: PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and instruments.

UL insulation system for Class B (130), F (155), H (180) 4).

Can make other customized Ferrite transformers:

Power range: core type using N67 grade material

<5: RM4, P11/7, EF12.6 and U10

5 to 10: E (F) 16, RM5 and P14/8

10 to 20: RM6, E (F) 20, P18, U15 and EFD15

20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20

50 to 100: ETD29, ETD34, RM12, P30 and EFD25

100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30

200 to 500: ETD44, ETD49 and E55

>500: ETD54, ETD59 and E65 5)Advantage:

1 - UL, CUL, CE, ISO9001: 2008

2 - We offer custom-made transformers, OEM and ODM are welcome

3 - We deliver the quality you expect at consistently competitive prices

4 - Transformer quality lifetime: 10 Years.

5 - Specialty Sales service: 5 -10 Years

6 - Transformers Test: 100% test before the shipment About us:

1).

Tianjin Grewin Technology Co., ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".

Grewin Mission: Growing together side by side, Mutual success hand in hand.

Efd Size High Frequnency Transformer for Visual Equipment Production:

Efd Size High Frequnency Transformer for Visual Equipment

2).

Terms of Shipment:

Within 10 working days after received related prepayment or L/C.

3).

Payment terms:

(1).

T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before

delivery.

(2).

By irrevocable L/C at sight, to be issued immediately against confirmed order.

(3).

Payment by T/T, if order amount is less than USD 20, 000 - 4).

Flow chart of trading activities: NO Step Days need 1 Request for quotation 1 day 2 Making quotations 1 day 3 Offer and counter offer 3 days 4 Sending and receiving samples 3-10 days 5 Sample confirmation 3 days 6 Placing a firm order 1 day 7 Paying and receiving the down payment 1-4 day 8 Factory production & Quality inspection 15-20 days 9 Paying and receiving the balance 4 days 10 Delivery of goods 1 days Contact: Amy Tianjin Grewin Technology Co., Ltd. Tel: 86-22-84943756
