Electrical Industrial Slip Ring With 50 8mm Through Bores - China

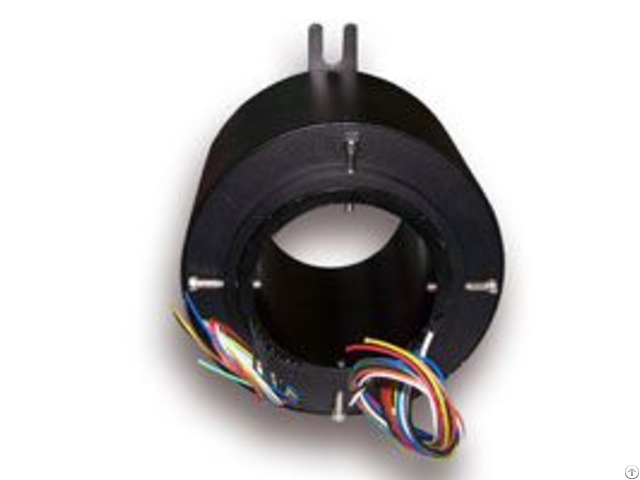

T12 slip ring capsule is a standard silpring with a 50.4mm (2.0 Inch) through-bore for routing of hydraulic or pneumatic lines or driver shaft.

This design features long life, fiber precious metal brush contact technology for ultimate performance in many challenging applications.

With aluminum body, double precision roller bearings provide smoother running, lower torque and lower electrical noise than competitive slip rings.

A.

)Specification:

Voltage : 380V AC/DC

Current Rating: 5, 10A/Ring

Speed: 250PRM

Insulation Resistance: 1000MΩ@500VDC Dielectric Strength: AC 600V@60Hz, 60S Electrical Noise: 70 milliohms MAX @5rpm, 50milliamps, 6V DC

Contact Material: Precious metal

Lead Size/Type: 0.5mm2 Teflon wire Operate Temp : -20℃～+80℃

Storage Temp : -30℃～+90℃

B.

)Feature:

● 50.4mm through-bore, Compact 119mm outside diameter;

● Flexible Module design;

● Multi circuits/channels design can deliver both power & signals at the same time;

● Speeds up to 2500 rpm max.

(Option);

● No need to maintain.

C.

)Application:

● Rotary tables, test equipment, cable reels;

● Robots, processing equipment and rotary sensors;

● Exhibit / display equipment;

● Medical equipment.

D.

)Option:

● Higher voltage and current (Up to 100A, 2000V);

● Higher speed (Up to 5000Rpm);

● Wider range of temperature (-60~200℃);

● Higher protection class (up to IP67 & Explosion-proof type);

● Style of exits for lead wires;

● Flanges for installation.
